SA15-11SRWA - Kingbright

Description: KINGBRIGHT - SA15-11SRWA - LED DISPLAY, 1.5", RED, CA

Download SA15-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

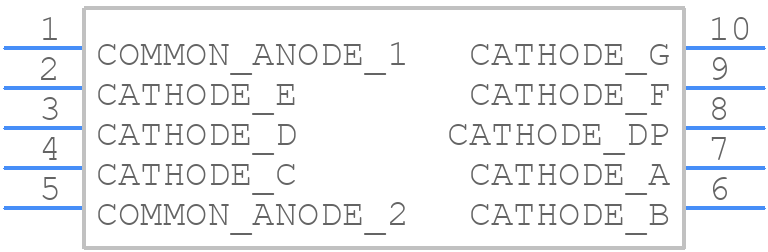

SA15-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

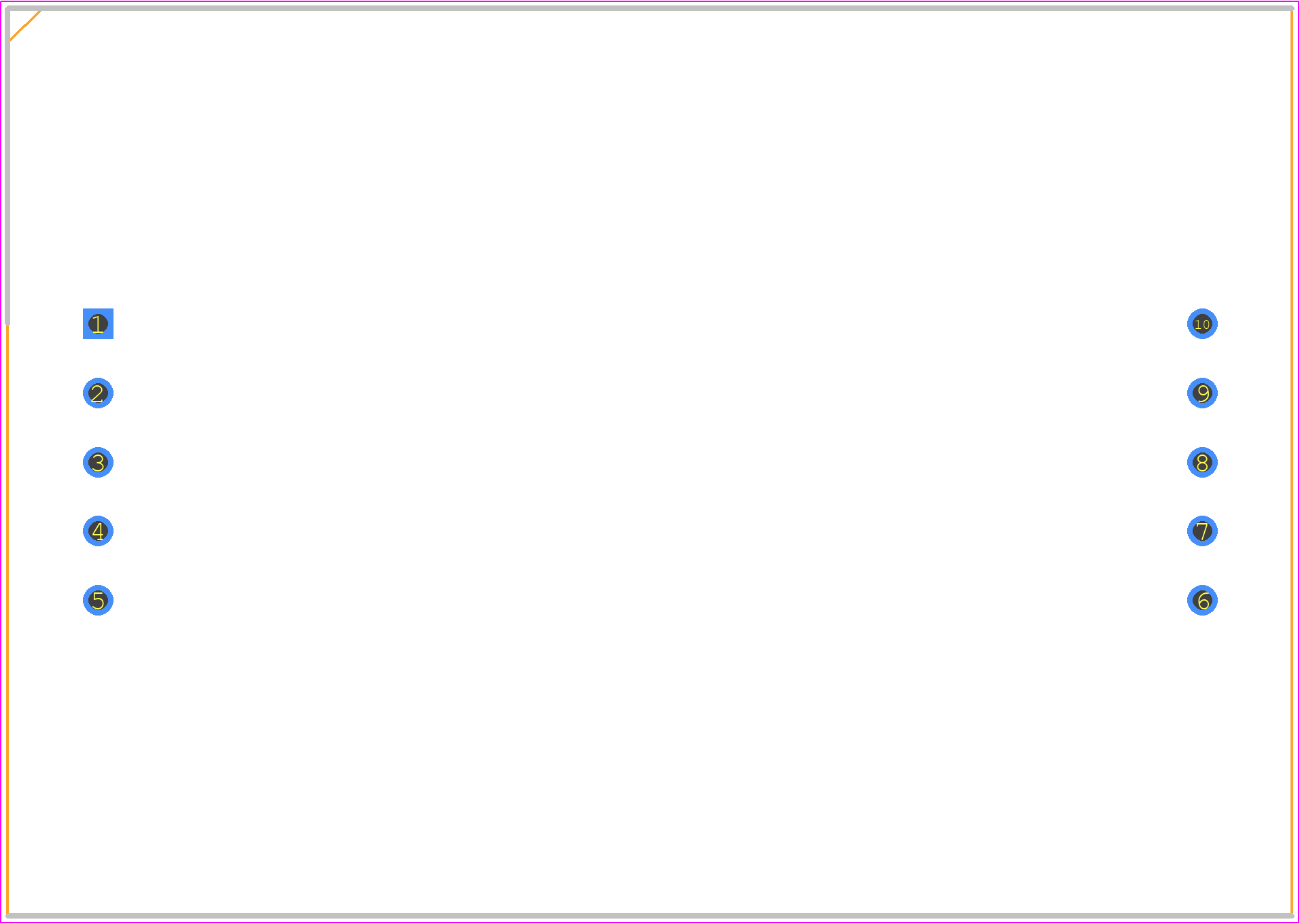

SA15-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 38.1mm (1.5INCH) SINGLE DIGIT NUMERIC DISPLAY
click to zoom
3D Models
SA15-11SRWA - Kingbright - 3D model - Dual-In-Line Sockets - 38.1mm (1.5INCH) SINGLE DIGIT NUMERIC DISPLAY
click to zoom

SA15-11SRWA Details

  • Manufacturer Part Number:

    SA15-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    38.1 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

SA15-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA15-11SRWA is -40°C to 100°C.
  • Yes, the SA15-11SRWA is suitable for outdoor use due to its high luminous intensity and IP67 rating, which provides protection against dust and water ingress.
  • The typical forward voltage drop of the SA15-11SRWA is around 2.0-2.5V, depending on the operating current.
  • Yes, the SA15-11SRWA can be used in high-temperature applications up to 85°C, but the luminous intensity may decrease at higher temperatures.
  • Yes, the SA15-11SRWA is compatible with PWM dimming, but the frequency should be above 100Hz to avoid flicker.
