SA18-11EWA footprint, schematic symbol and 3D model by Kingbright

Symbol

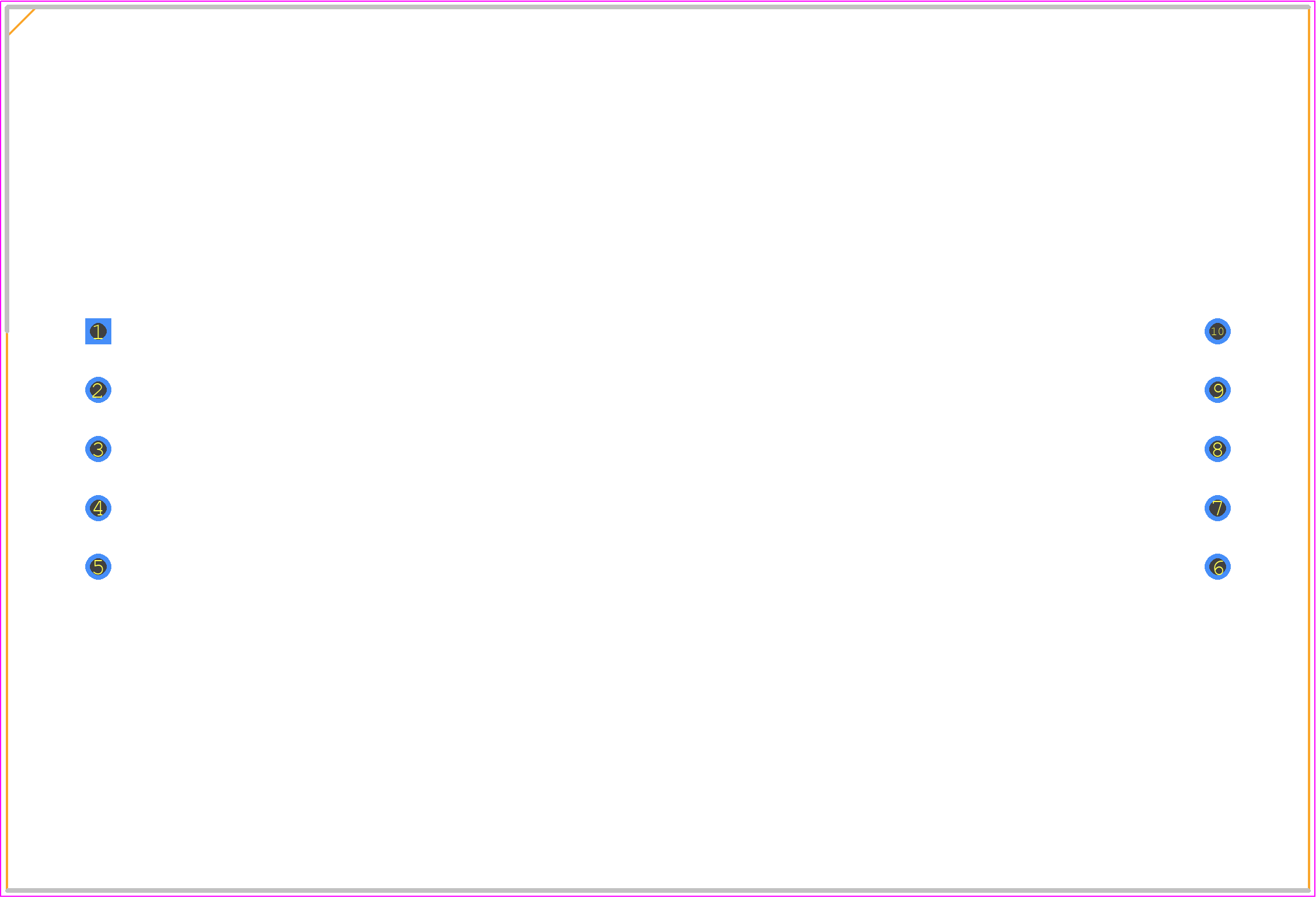

PCB Footprints

3D Models

SA18-11EWA Details

The recommended storage temperature for SA18-11EWA is -20°C to 30°C, with a relative humidity of 60% or less.
Yes, the SA18-11EWA is suitable for outdoor use, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
The maximum allowable voltage for SA18-11EWA is 3.5V, exceeding which may damage the LED or reduce its lifespan.
When soldering the SA18-11EWA, use a soldering iron with a temperature of 260°C or less, and avoid applying excessive force or pressure, which can damage the LED or its internal components.
Yes, the SA18-11EWA is compatible with lead-free soldering, but it's essential to follow the recommended soldering profile and temperature to ensure reliable connections.

Expert Contribution

System Verified

Community Approved

Use the download button to access the SA18-11EWA schematic symbol, PCB footprint, and 3D model.
