SA23-11EWA - Kingbright

Description: LED Displays & Accessories Single Red 625nm Common Anode

Download SA23-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

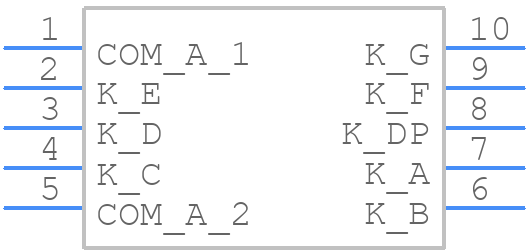

SA23-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

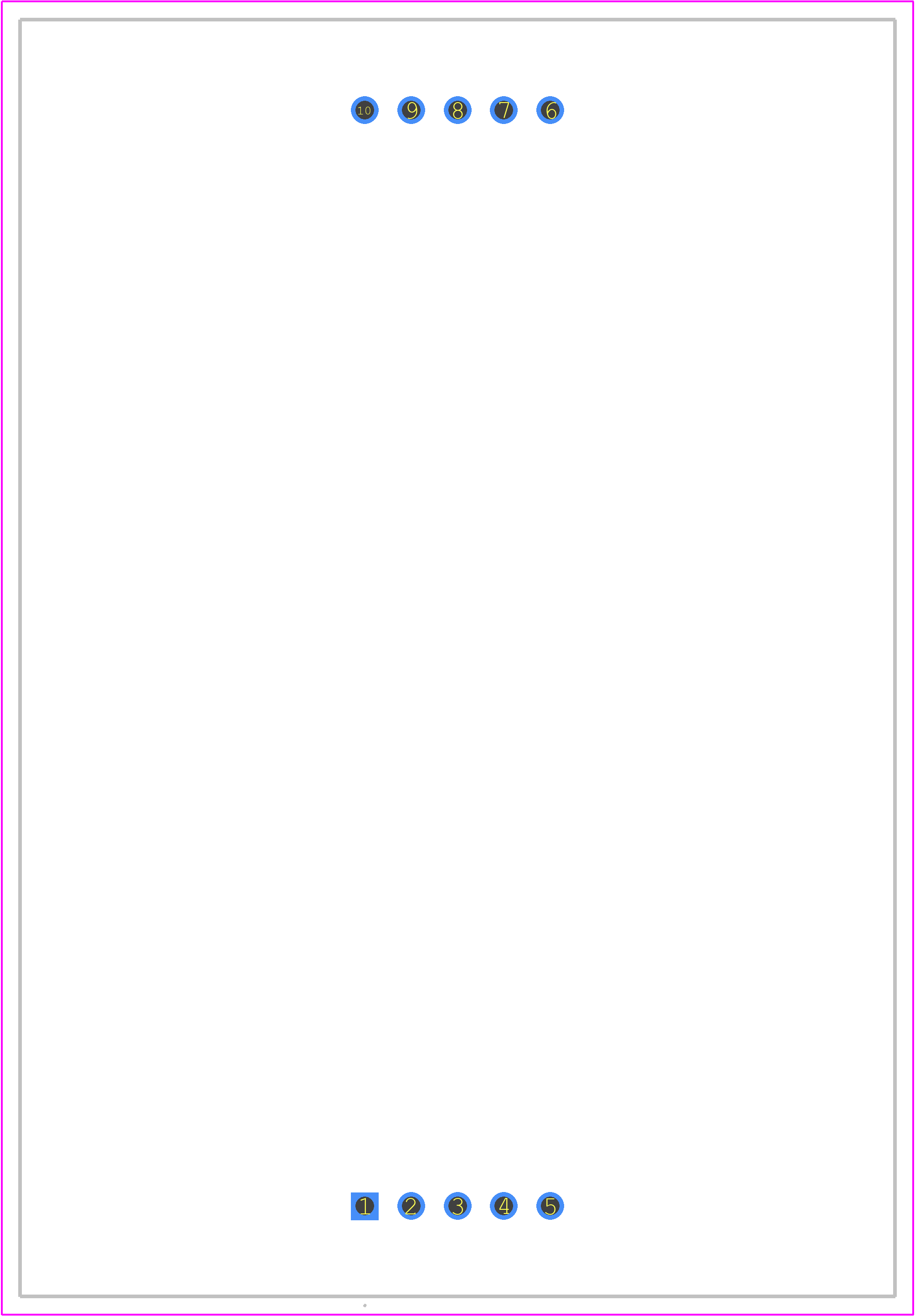

SA23-11EWA - Kingbright PCB footprint - Other - Other - SA23-11EWA-1
click to zoom
3D Models
SA23-11EWA - Kingbright - 3D model - Other - SA23-11EWA-1
click to zoom

SA23-11EWA Details

  • Manufacturer Part Number:

    SA23-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    56.9 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA23-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA23-11EWA is -20°C to 40°C (-4°F to 104°F) to prevent damage to the LED.
  • While the SA23-11EWA is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV radiation, and extreme temperatures.
  • The maximum soldering temperature for SA23-11EWA is 260°C (500°F) for 3 seconds. Exceeding this temperature can damage the LED.
  • Yes, the SA23-11EWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The typical lifespan of the SA23-11EWA is around 50,000 hours, depending on operating conditions and environmental factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA23-11EWA Overview

Use the download button to access the SA23-11EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA23-, or try a keyword search, such as LED Displays
