SA23-11GWA footprint, schematic symbol and 3D model by Kingbright

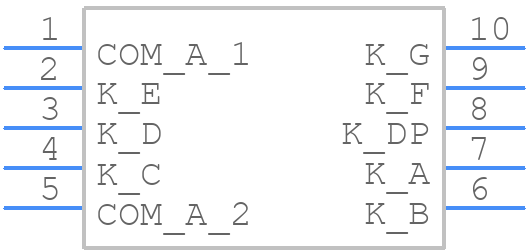

Symbol

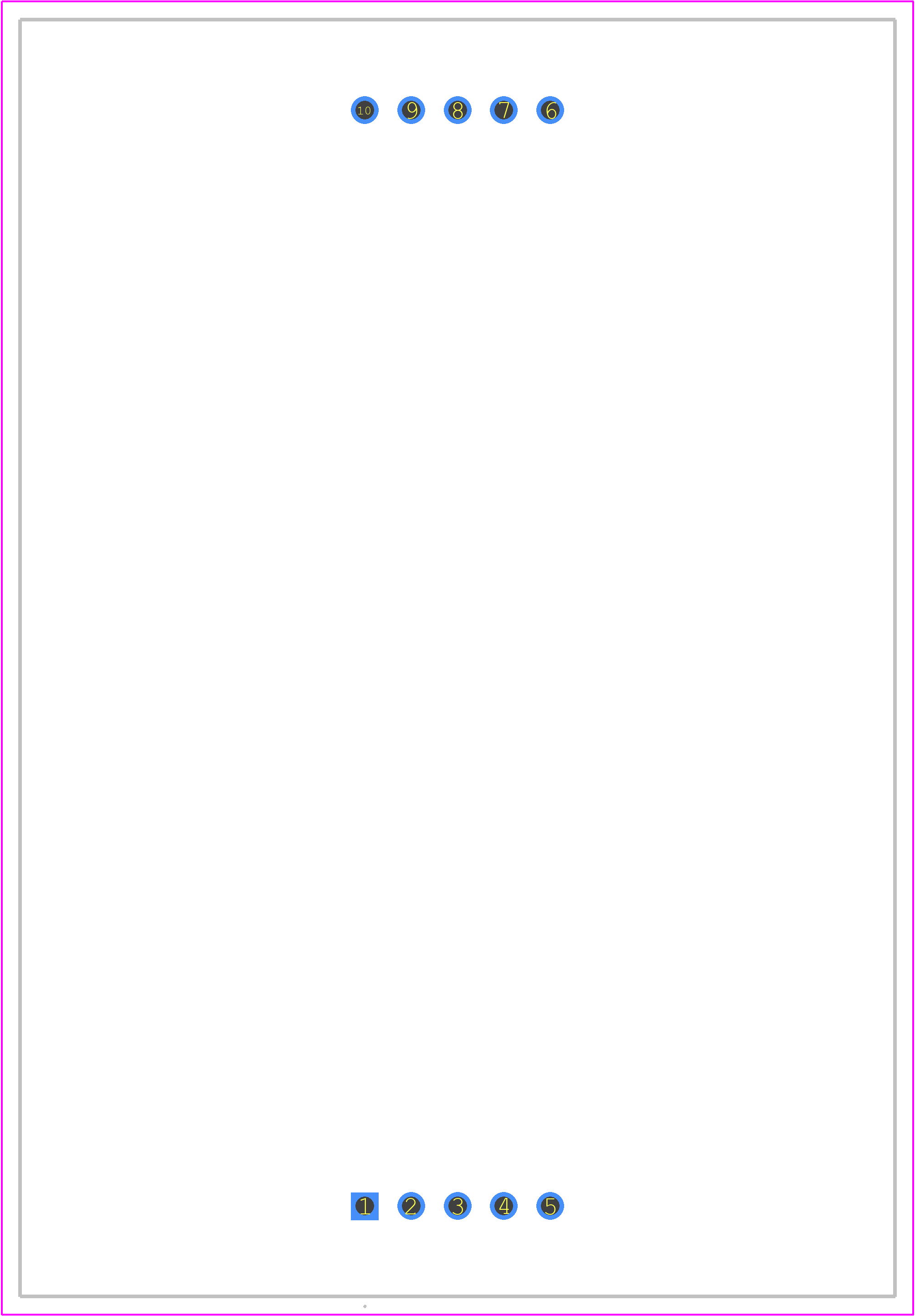

PCB Footprints

3D Models

SA23-11GWA Details

The recommended storage temperature for SA23-11GWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
Yes, the SA23-11GWA is suitable for outdoor use, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures to prevent degradation.
The maximum soldering temperature for SA23-11GWA is 260°C (500°F) for 3 seconds. Exceeding this temperature can cause damage to the LED.
Yes, the SA23-11GWA is compatible with lead-free soldering, but it's essential to follow the recommended soldering profile to prevent damage.
The typical lifespan of the SA23-11GWA is around 50,000 hours, but this can vary depending on operating conditions, such as temperature, current, and environmental factors.
