SA23-11SRWA - Kingbright

Description: LED Displays & Accessories SUPER RED DIFFUSED 1 DIGIT

Download SA23-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

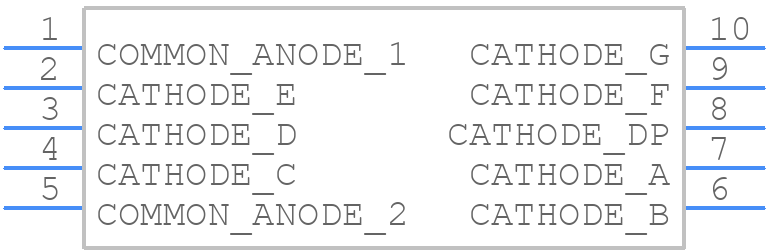

SA23-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

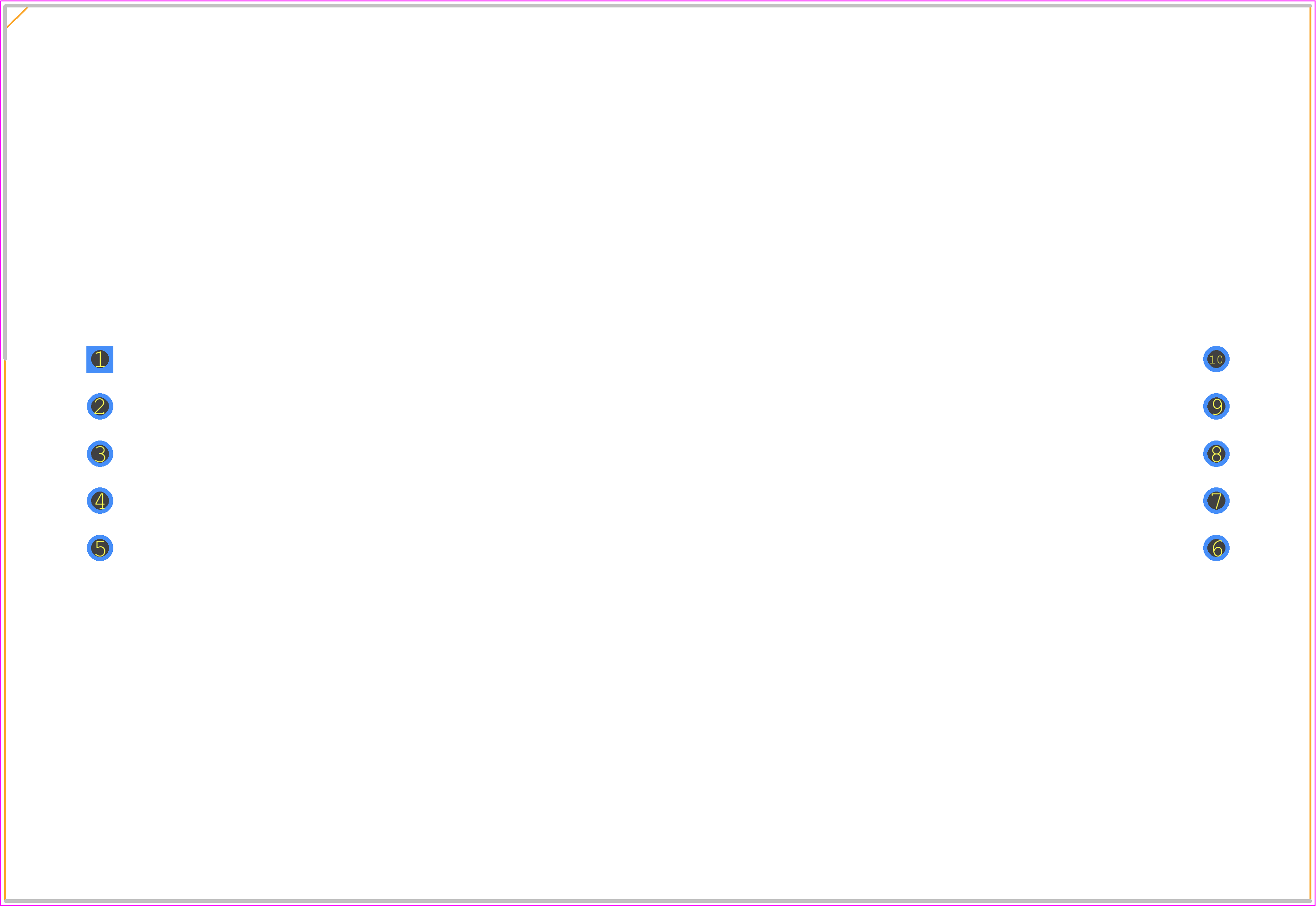

SA23-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 57mm (2.3INCH) SINGLE DIGIT NUMERIC DISPLAY
click to zoom
3D Models
SA23-11SRWA - Kingbright - 3D model - Dual-In-Line Sockets - 57mm (2.3INCH) SINGLE DIGIT NUMERIC DISPLAY
click to zoom

SA23-11SRWA Details

  • Manufacturer Part Number:

    SA23-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0.4

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    56.9 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA23-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for SA23-11SRWA is -30°C to 60°C.
  • Yes, SA23-11SRWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV degradation.
  • The maximum forward current rating for SA23-11SRWA is 20mA, but it's recommended to operate at 10mA or less for optimal lifespan and reliability.
  • Yes, SA23-11SRWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The typical luminous intensity of SA23-11SRWA is 10-20 mcd, but this can vary depending on the viewing angle and ambient lighting conditions.
