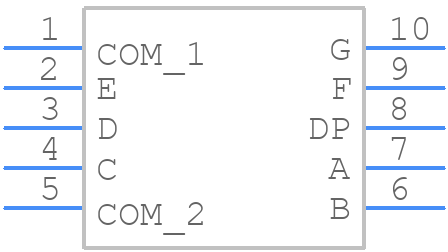

Symbol

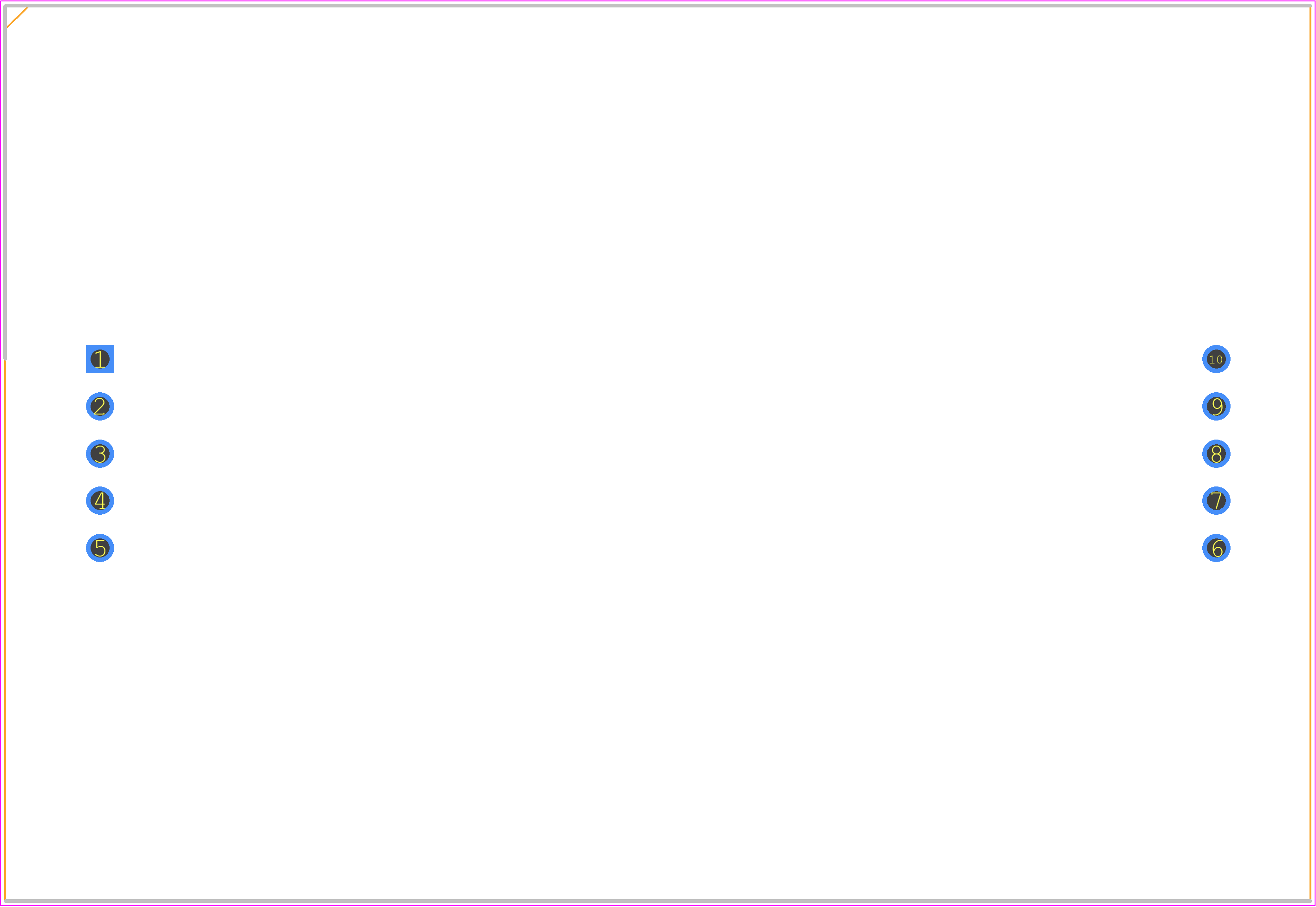

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SA23-11SURKWA
- Part Number SA23-11SURKWA
- Manufacturer Kingbright
- Pin Count 10
- Part Category LED
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - LED
- Released Date Aug 13, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SA23-11SURKWA Details
-
Manufacturer Part Number:
SA23-11SURKWA
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT PACKAGE-10
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Kingbright
-
YTEOL:
6
-
Color:
HYPER RED
-
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
-
Display Height:
56.9 mm
SA23-11SURKWA Frequently Asked Questions (FAQs)
-
The recommended storage temperature for SA23-11SURKWA is -40°C to 100°C.
-
Yes, SA23-11SURKWA is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture ingress.
-
The maximum forward current for SA23-11SURKWA is 30mA. Exceeding this value may reduce the LED's lifespan or cause damage.
-
Yes, SA23-11SURKWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
-
The typical viewing angle for SA23-11SURKWA is 120°, but this can vary depending on the specific application and design.
Trust Checks
Expert Contribution
System Verified
Community Approved
SA23-11SURKWA Overview
Use the download button to access the SA23-11SURKWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SA23-,
or try a keyword search, such as LED Displays
