SA23-12GWA - Kingbright

Description: LED Displays & Accessories Single Green 568nm Common Anode

Download SA23-12GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA23-12GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

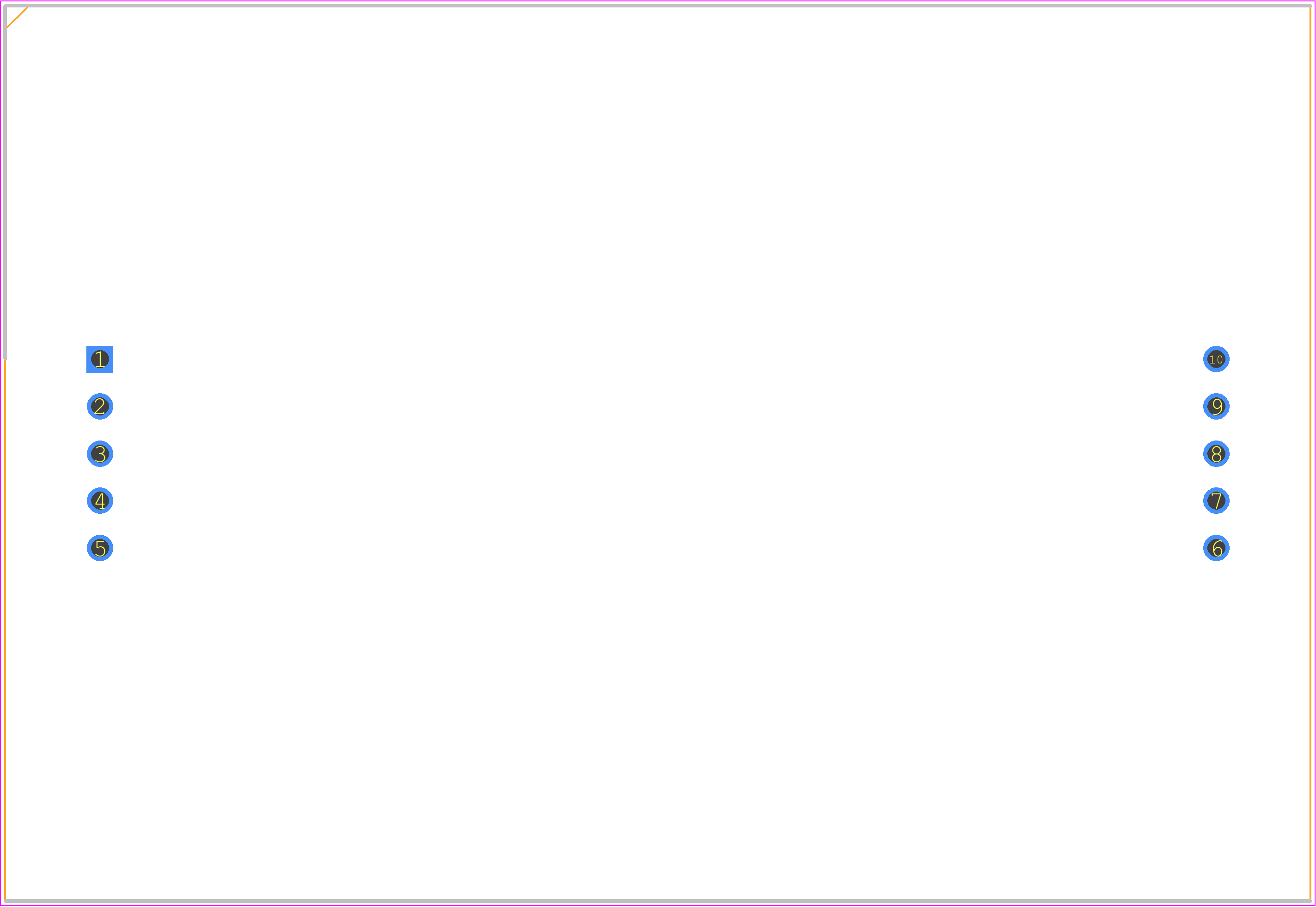

SA23-12GWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SA23-12GWA
click to zoom
3D Models
SA23-12GWA - Kingbright - 3D model - Dual-In-Line Sockets - SA23-12GWA
click to zoom

SA23-12GWA Details

  • Manufacturer Part Number:

    SA23-12GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    56.9 mm

  • Forward Current-Max:

    0.025 A

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

SA23-12GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA23-12GWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
  • Yes, the SA23-12GWA is suitable for outdoor use, but it's essential to ensure proper sealing and protection from moisture and UV radiation to prevent degradation.
  • The maximum soldering temperature for SA23-12GWA is 260°C (500°F) for 3 seconds or less.
  • Yes, the SA23-12GWA is compatible with lead-free soldering, but it's crucial to follow the recommended soldering profile to avoid damage.
  • The typical junction temperature of SA23-12GWA is 125°C (257°F), but it's recommended to keep it below 100°C (212°F) for optimal performance and lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA23-12GWA Overview

Use the download button to access the SA23-12GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA23-, or try a keyword search, such as LED Displays
