Description:The SA306A is a fully integrated switching amplifier designed primarily to drive three-phase Brushless DC (BLDC) motors. Three independent half bridges provide over 15 amperes peak output current under microcontroller or DSC control. Thermal and short circuit monitoring is provided, which generates fault signals for the microcontroller to take appropriate action. Additionally, cycle-by-cycle current limit offers user programmable hardware protection independent of the microcontroller.
Apex Microtechnology recommends a 4-layer PCB with a dedicated ground plane, and thermal vias under the package to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended for optimal performance.
To ensure reliable operation across the full temperature range, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal interface materials and heat sinks to maintain a stable temperature.
The SA306AHU has built-in ESD protection, but it's still essential to follow standard ESD handling precautions, such as using wrist straps, anti-static mats, and ionizers to prevent damage during handling and assembly.
The SA306AHU is a commercial-grade product, but Apex Microtechnology offers a high-reliability version, the SA306AHU-HP, which is designed for aerospace and defense applications. Contact Apex Microtechnology for more information on the high-reliability version.
The SA306AHU is not specifically designed for radiation-hardened applications. However, Apex Microtechnology can provide radiation testing and characterization data upon request. Contact Apex Microtechnology for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SA306AHU Overview

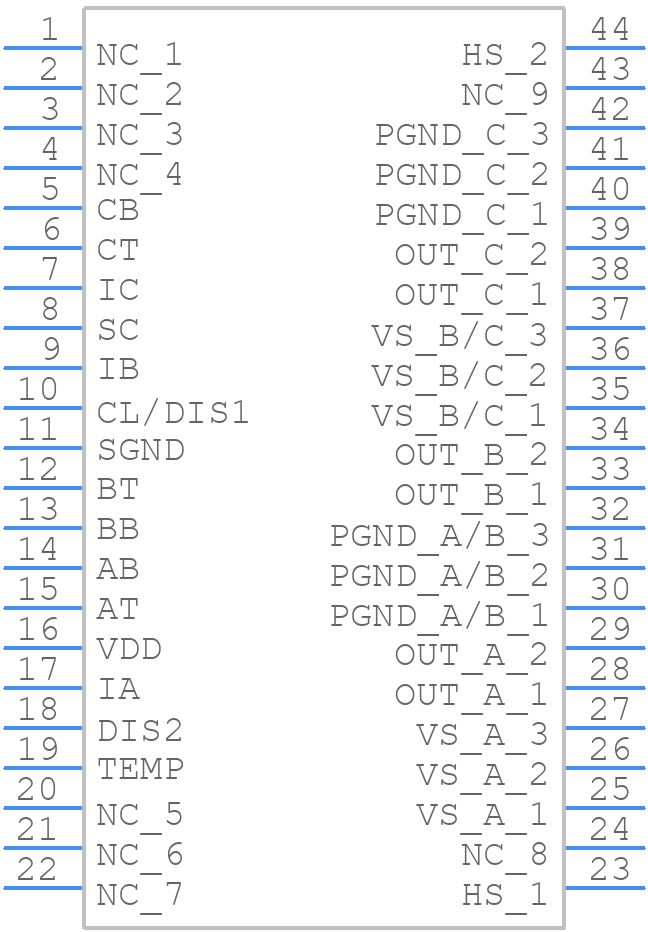

Use the download button to access the SA306AHU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA306,
or try a keyword search, such as Motion Control Electronics
