SA32-11SRWA - Kingbright

Description: SA32-11SRWA Kingbright 7-Segment LED Display, CA Red 31 mcd RH DP 8mm

Download SA32-11SRWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SA32-11SRWA model

Email notifications will be applied after download.

Send part feedback

Symbol

SA32-11SRWA - Kingbright - PCB symbol

PCB Footprints

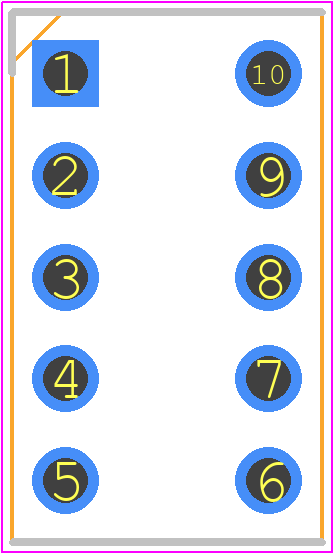

SA32-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SA32-11SRWA

Datasheet Download Datasheet
Stock & Prices Price & Stock for SA32-11SRWA
Part Number SA32-11SRWA
Manufacturer Kingbright
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - SA32-11SRWA
Released Date Sep 27, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SA32-11SRWA Details

Manufacturer Part Number:
SA32-11SRWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
Additional Feature:
IC COMPATIBLE
Color:
SUPER BRIGHT RED
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
8 mm
Forward Current-Max:
0.03 A
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY

SA32-11SRWA Frequently Asked Questions (FAQs)

The recommended storage temperature for SA32-11SRWA is -40°C to 100°C.
Yes, SA32-11SRWA is compatible with lead-free soldering processes.
The maximum forward current rating for SA32-11SRWA is 30mA.
Yes, SA32-11SRWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure to protect it from environmental factors.
Yes, SA32-11SRWA is RoHS (Restriction of Hazardous Substances) compliant.
