SA36-11CGKWA - Kingbright

Description: 7-Seg Display 1-Digit 9.14mm Green Kingbright SA36-11CGKWA 7-Segment LED Display, CA Green 11 mcd RH DP 9.14mm

Download SA36-11CGKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

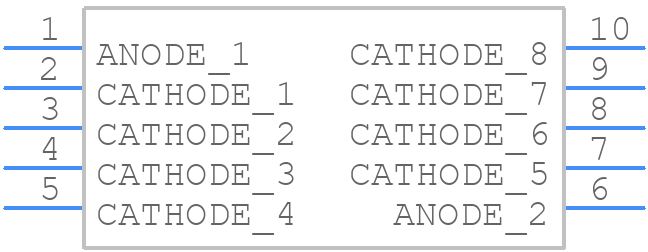

SA36-11CGKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

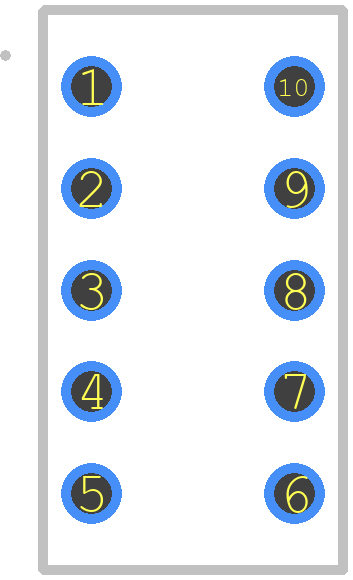

SA36-11CGKWA - Kingbright PCB footprint - Other - Other - SA36-11CGKWA
click to zoom
3D Models
SA36-11CGKWA - Kingbright - 3D model - Other - SA36-11CGKWA
click to zoom

SA36-11CGKWA Details

  • Manufacturer Part Number:

    SA36-11CGKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    GREEN

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.14 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA36-11CGKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA36-11CGKWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • Yes, SA36-11CGKWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SA36-11CGKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SA36-11CGKWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
  • The typical lifespan of SA36-11CGKWA is 50,000 hours or more, depending on the operating conditions and usage.
