SA36-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.551" H x 0.295" W x 0.335" D (14.00mm x 7.50mm x 8.50mm) 10-DIP (0.200", 5.08mm)

Download SA36-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

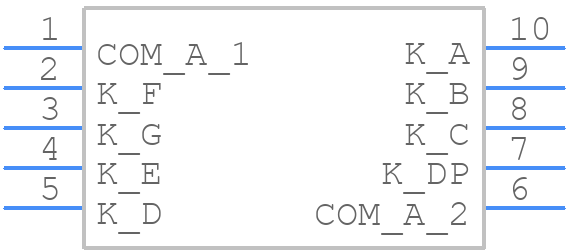

SA36-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

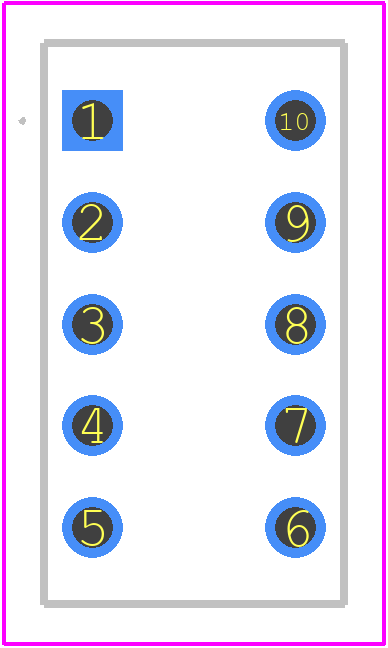

SA36-11SURKWA - Kingbright PCB footprint - Other - Other - SA36-11SURKWA-3
click to zoom
3D Models
SA36-11SURKWA - Kingbright - 3D model - Other - SA36-11SURKWA-3
click to zoom

SA36-11SURKWA Details

  • Manufacturer Part Number:

    SA36-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.14 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA36-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA36-11SURKWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, SA36-11SURKWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum soldering temperature for SA36-11SURKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SA36-11SURKWA is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical lifespan of SA36-11SURKWA is 50,000 hours, but this can vary depending on operating conditions and usage.
