SA39-11PBWA/A - Kingbright

Description: LED Displays & Accessories Blue diffused 1 Digit

Download SA39-11PBWA/A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

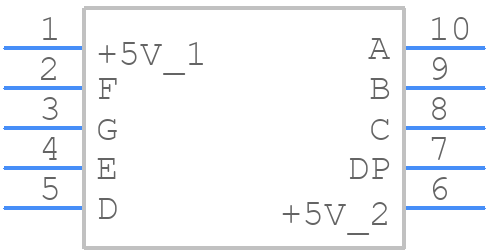

SA39-11PBWA/A - Kingbright - PCB symbol
click to zoom
PCB Footprints
SA39-11PBWA/A - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 7 segment Display
click to zoom

SA39-11PBWA/A Details

  • Manufacturer Part Number:

    SA39-11PBWA/A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    BLUE

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.9 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA39-11PBWA/A Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA39-11PBWA/A is -20°C to 30°C, with a relative humidity of 60% or less.
  • While SA39-11PBWA/A is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SA39-11PBWA/A is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SA39-11PBWA/A is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles.
  • The typical lifespan of SA39-11PBWA/A is around 50,000 hours, depending on operating conditions, temperature, and usage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA39-11PBWA/A Overview

Use the download button to access the SA39-11PBWA/A schematic symbol and PCB footprint.
