SA39-12EWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) 10-DIP (0.300", 7.62mm)

Download SA39-12EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

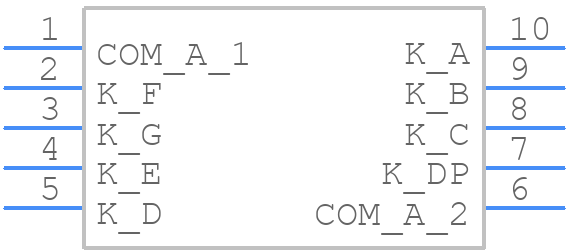

SA39-12EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

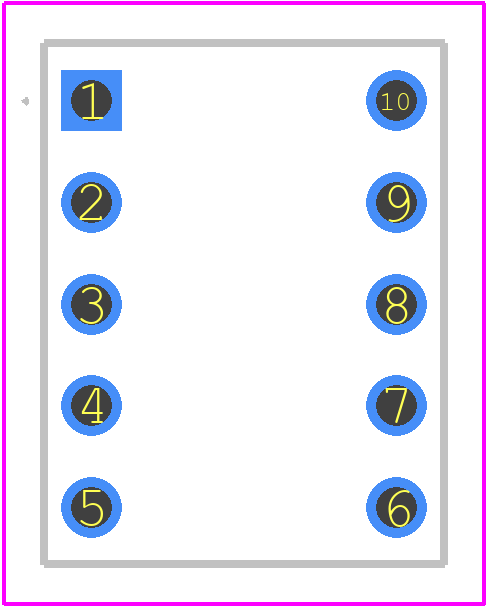

SA39-12EWA - Kingbright PCB footprint - Other - Other - 10-DIP_2025-1.3
click to zoom
3D Models
SA39-12EWA - Kingbright - 3D model - Other - 10-DIP_2025-1.3
click to zoom

SA39-12EWA Details

  • Manufacturer Part Number:

    SA39-12EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.9 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA39-12EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA39-12EWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, SA39-12EWA can be used in outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SA39-12EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SA39-12EWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
  • The typical lifespan of SA39-12EWA is 50,000 hours or more, depending on operating conditions and environmental factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA39-12EWA Overview

Use the download button to access the SA39-12EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA39-, or try a keyword search, such as LED Displays
