SA39-12SRWA - Kingbright

Description: LED Displays & Accessories Single Red 640nm Common Anode

Download SA39-12SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

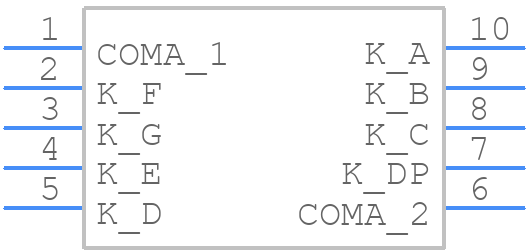

SA39-12SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

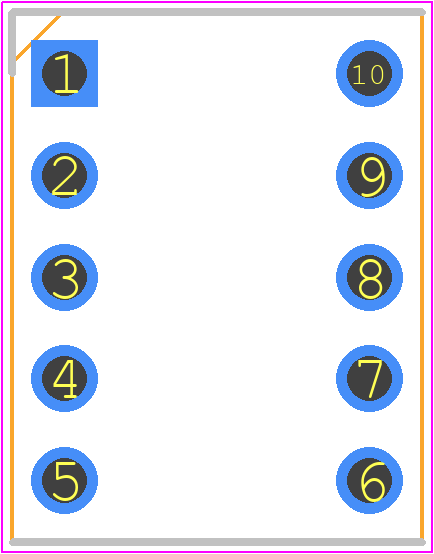

SA39-12SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIS 10PIN
click to zoom

SA39-12SRWA Details

  • Manufacturer Part Number:

    SA39-12SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.9 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA39-12SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for SA39-12SRWA is -40°C to 100°C.
  • Yes, SA39-12SRWA is suitable for outdoor applications due to its water-resistant design and IP67 rating. However, it's essential to ensure proper sealing and protection from direct sunlight and extreme weather conditions.
  • The maximum allowable voltage for SA39-12SRWA is 15V. Exceeding this voltage may damage the device or affect its performance.
  • SA39-12SRWA has a polarity-sensitive design. Ensure that the anode (positive leg) is connected to the positive voltage supply, and the cathode (negative leg) is connected to the negative voltage supply or ground.
  • The recommended soldering temperature for SA39-12SRWA is 260°C (500°F) with a maximum soldering time of 3 seconds. Exceeding these parameters may damage the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA39-12SRWA Overview

Use the download button to access the SA39-12SRWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SA39-, or try a keyword search, such as LED Displays
