SA40-18SYKWA - Kingbright

Description: SA40-18SYKWA Kingbright 7-Segment LED Display, CA Yellow 450 mcd RH DP 101mm

Download SA40-18SYKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

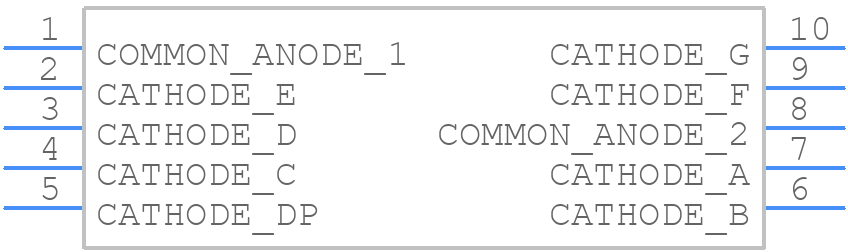

SA40-18SYKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

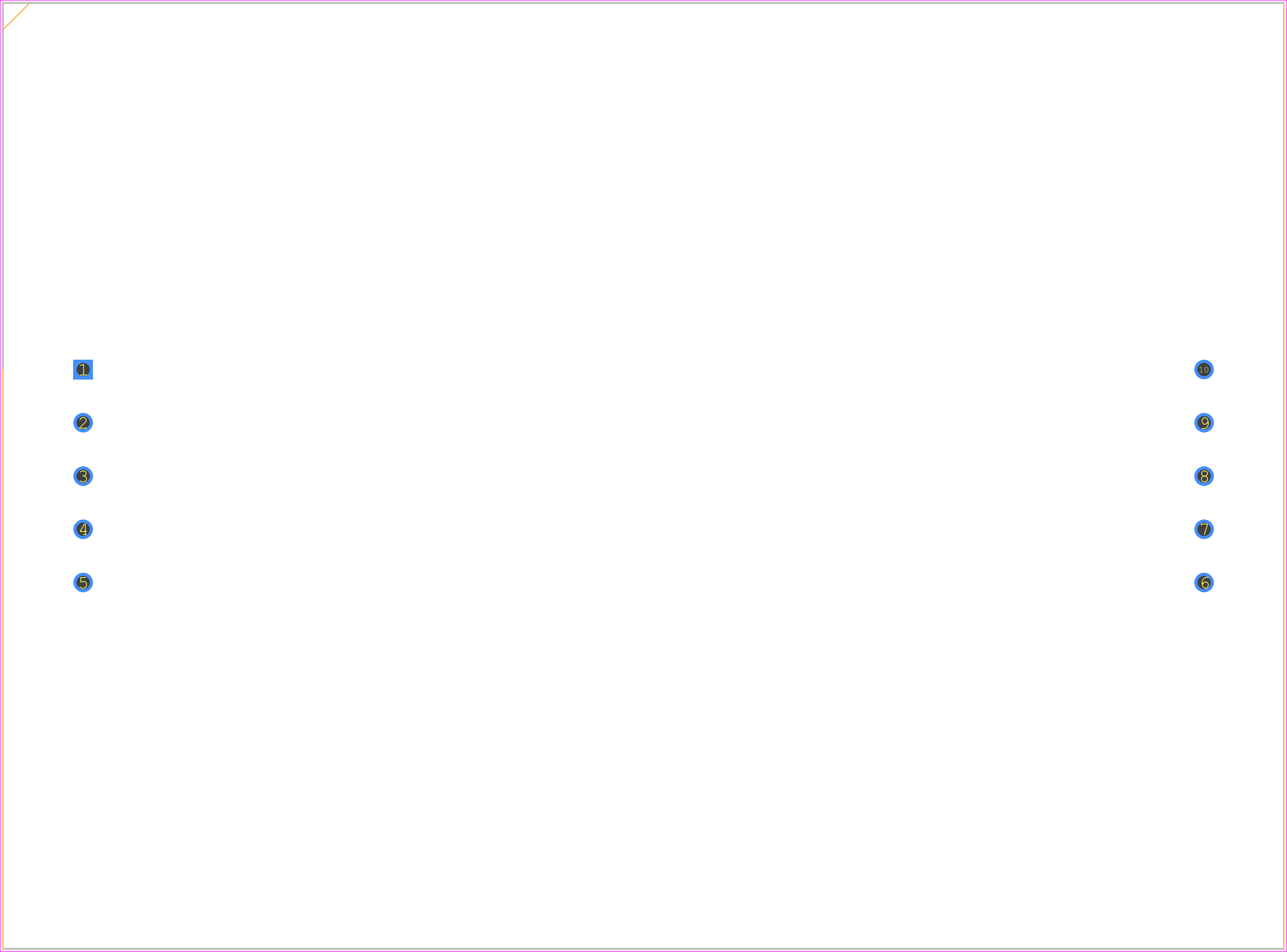

SA40-18SYKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SA40-18SYKWA_11
click to zoom

SA40-18SYKWA Details

  • Manufacturer Part Number:

    SA40-18SYKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    SUPER BRIGHT YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    101.2 mm

  • Forward Current-Max:

    0.06 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA40-18SYKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA40-18SYKWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, SA40-18SYKWA can be used in outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum soldering temperature for SA40-18SYKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SA40-18SYKWA is compatible with lead-free soldering, but it's essential to follow the recommended soldering profile to avoid damaging the component.
  • The typical lifespan of SA40-18SYKWA is around 50,000 hours, depending on the operating conditions, such as temperature, humidity, and current.
