SA43-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 10mA 0.748" H x 0.496" W x 0.310" D (19.00mm x 12.60mm x 7.87mm) 14-DIP (0.300", 7.62mm), 11 Leads

Download SA43-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

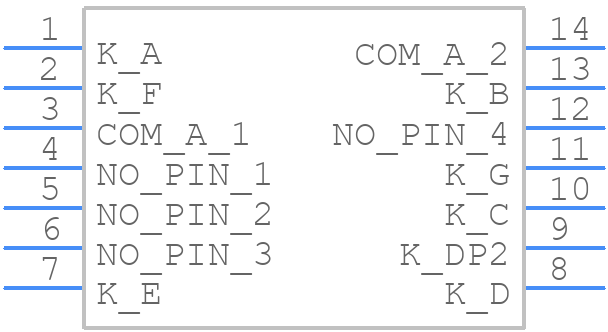

SA43-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

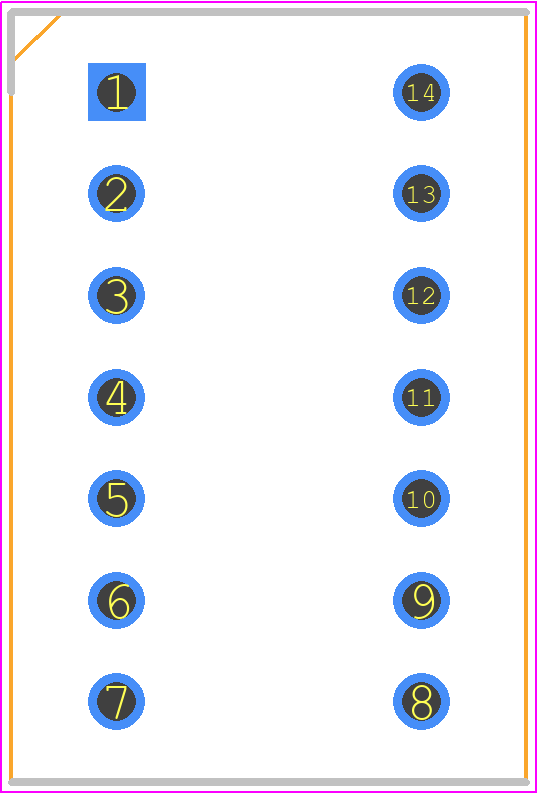

SA43-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SA43-11SURKWA
click to zoom
3D Models
SA43-11SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - SA43-11SURKWA
click to zoom

SA43-11SURKWA Details

  • Manufacturer Part Number:

    SA43-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-11

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.92 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA43-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SA43-11SURKWA is -20°C to 70°C.
  • The SA43-11SURKWA can be interfaced with a microcontroller using a serial interface, such as SPI or I2C. The specific interface protocol depends on the microcontroller and the application requirements.
  • The typical current consumption of the SA43-11SURKWA is around 10-20mA, depending on the display mode and brightness setting.
  • Yes, the SA43-11SURKWA is suitable for outdoor applications, but it may require additional protection against environmental factors such as moisture, UV, and extreme temperatures.
  • The brightness of the SA43-11SURKWA can be adjusted by controlling the current flowing through the LED segments or by using a dedicated brightness control pin, if available.
