SA56-11EWA footprint, schematic symbol and 3D model by Kingbright

Symbol

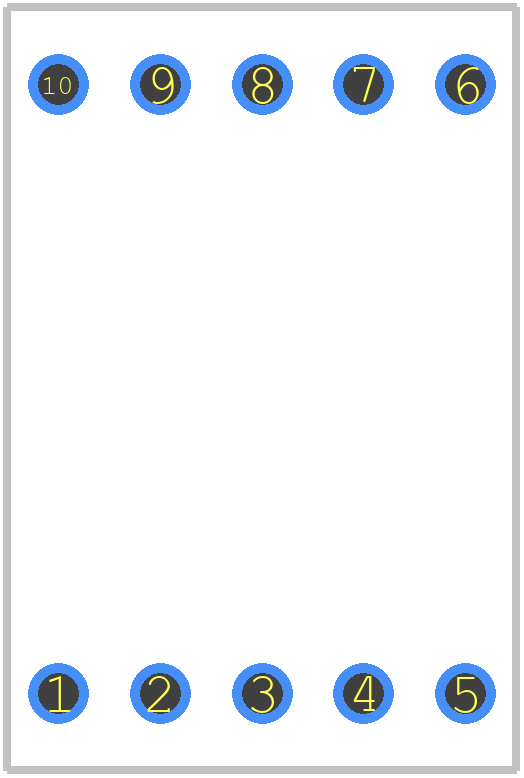

PCB Footprints

3D Models

SA56-11EWA Details

The recommended storage temperature for SA56-11EWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
Yes, SA56-11EWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
The maximum forward current for SA56-11EWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
Yes, SA56-11EWA is compatible with lead-free soldering, but the recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
The typical viewing angle for SA56-11EWA is 120°, but this can vary depending on the specific application and optical design.

System Verified

Use the download button to access the SA56-11EWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SA56-, or try a keyword search, such as LED Displays
