SA56-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)

Download SA56-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA56-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

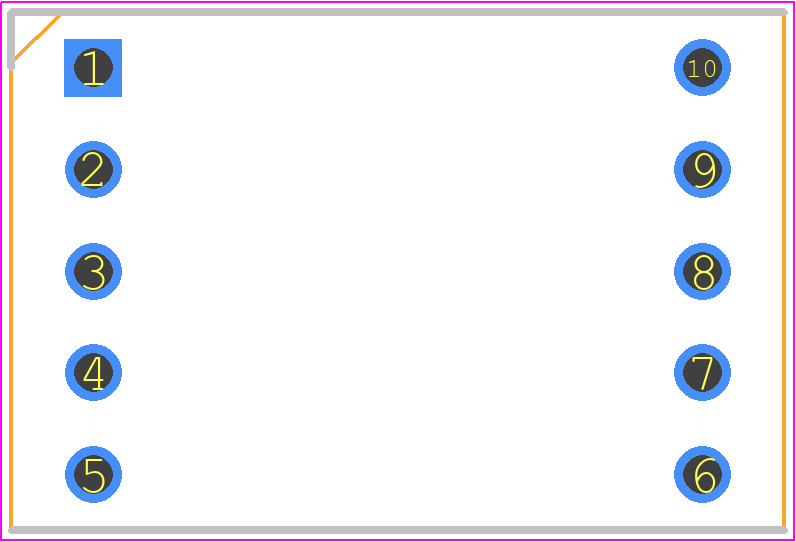

SA56-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP (0.600", 15.24mm)_2023
click to zoom
3D Models
SA56-11SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - 10-DIP (0.600", 15.24mm)_2023
click to zoom

SA56-11SURKWA Details

  • Manufacturer Part Number:

    SA56-11SURKWA

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA56-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA56-11SURKWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, SA56-11SURKWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure to protect the LED from environmental factors such as moisture, dust, and extreme temperatures.
  • The maximum forward current for SA56-11SURKWA is 30mA. Exceeding this current may reduce the LED's lifespan or cause damage.
  • Yes, SA56-11SURKWA is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's soldering guidelines to ensure reliable assembly.
  • The typical viewing angle for SA56-11SURKWA is 120°, but this may vary depending on the specific application and optical design.
