SA56-21SRWA - Kingbright

Description: LED Displays & Accessories .56 RED COMMON ANODE

Download SA56-21SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

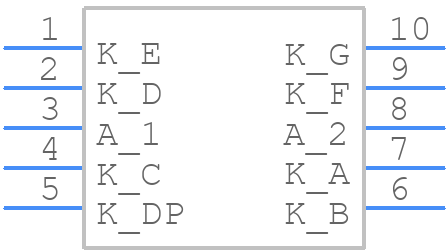

Symbol
SA56-21SRWA - Kingbright - PCB symbol
click to zoom

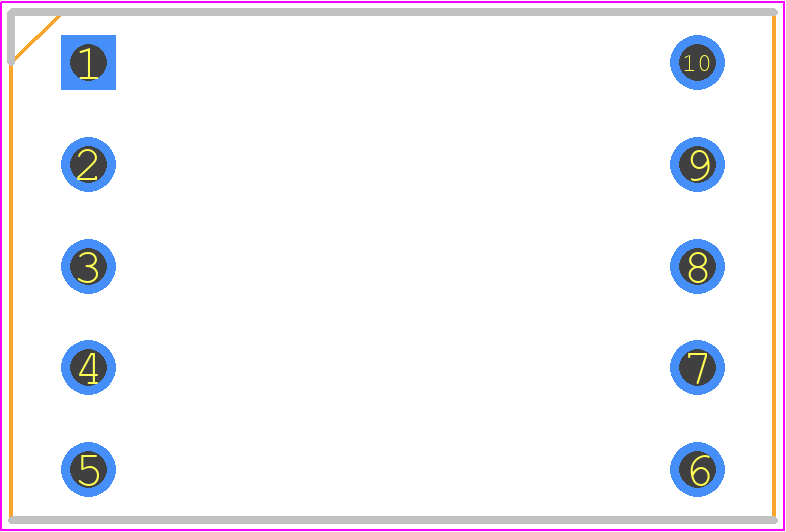

PCB Footprints
SA56-21SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SA56-21SRWA***
click to zoom

SA56-21SRWA Details

  • Manufacturer Part Number:

    SA56-21SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0.4

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

SA56-21SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA56-21SRWA is -20°C to 30°C.
  • Yes, SA56-21SRWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum soldering temperature for SA56-21SRWA is 260°C for 3 seconds.
  • Yes, SA56-21SRWA is compatible with lead-free soldering, but the soldering temperature and time should be adjusted according to the specific lead-free soldering process.
  • The typical luminous intensity of SA56-21SRWA is 4500-5500 mcd at 20mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA56-21SRWA Overview

Use the download button to access the SA56-21SRWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SA56-, or try a keyword search, such as LED Displays
