SA56-21YWA - Kingbright

Description: LED Displays & Accessories YELLOW DIFFUSED 1 DIGIT

Download SA56-21YWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA56-21YWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

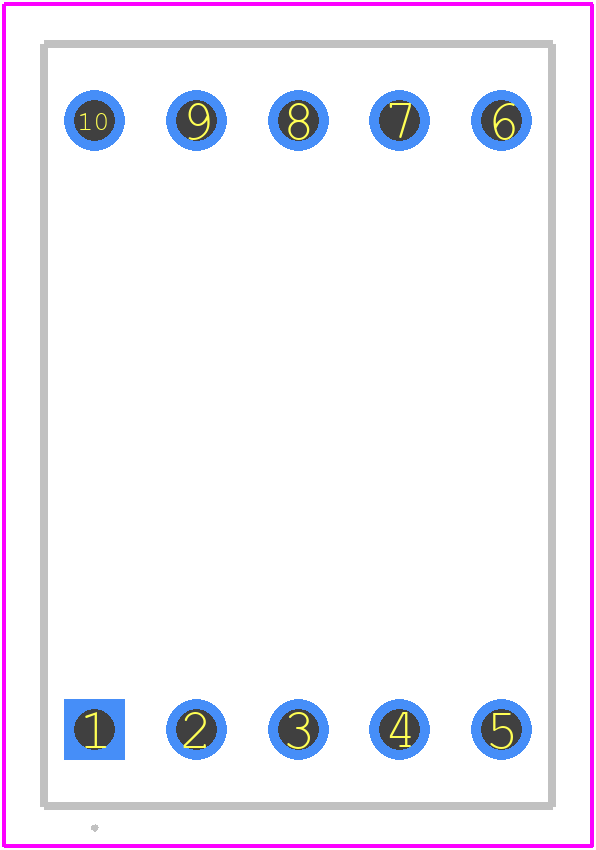

SA56-21YWA - Kingbright PCB footprint - Other - Other - SA56-21YWA-4
click to zoom
3D Models
SA56-21YWA - Kingbright - 3D model - Other - SA56-21YWA-4
click to zoom

SA56-21YWA Details

  • Manufacturer Part Number:

    SA56-21YWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    590 nm
