Part Image

SA56-51PBWA/A - Kingbright

Description: Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 3.05V 10mA 0.670" H x 0.492" W x 0.325" D (17.02mm x 12.50mm x 8.25mm) 10-DIP (0.600", 15.24mm)

Download SA56-51PBWA/A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA56-51PBWA/A - Kingbright - PCB symbol
click to zoom

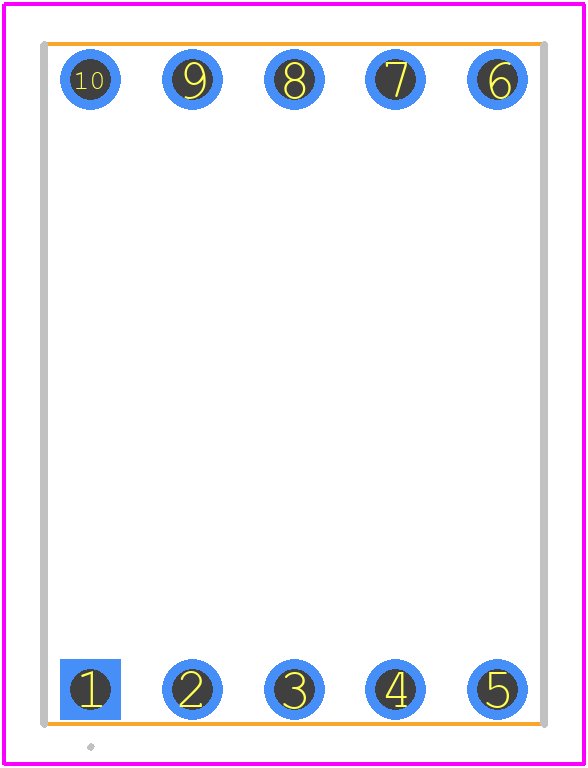

PCB Footprints
SA56-51PBWA/A - Kingbright PCB footprint - Other - Other - 10-DIP
click to zoom
3D Models
SA56-51PBWA/A - Kingbright - 3D model - Other - 10-DIP
click to zoom

SA56-51PBWA/A Details

  • Manufacturer Part Number:

    SA56-51PBWA/A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    BLUE

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA56-51PBWA/A Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA56-51PBWA/A is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, SA56-51PBWA/A can be used in outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum soldering temperature for SA56-51PBWA/A is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SA56-51PBWA/A is compatible with lead-free soldering, but it's recommended to follow the manufacturer's lead-free soldering profile to ensure reliability.
  • The typical lifespan of SA56-51PBWA/A is 50,000 hours or more, depending on the operating conditions and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA56-51PBWA/A Overview

Use the download button to access the SA56-51PBWA/A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA56-, or try a keyword search, such as LED Displays
