SBA23-11EGWA footprint, schematic symbol and 3D model by Kingbright

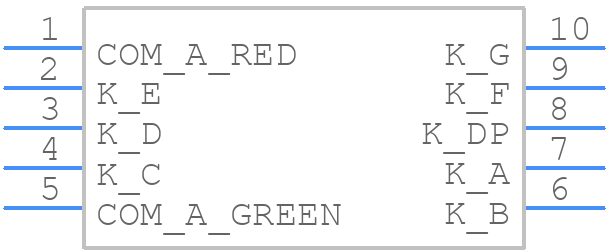

Symbol

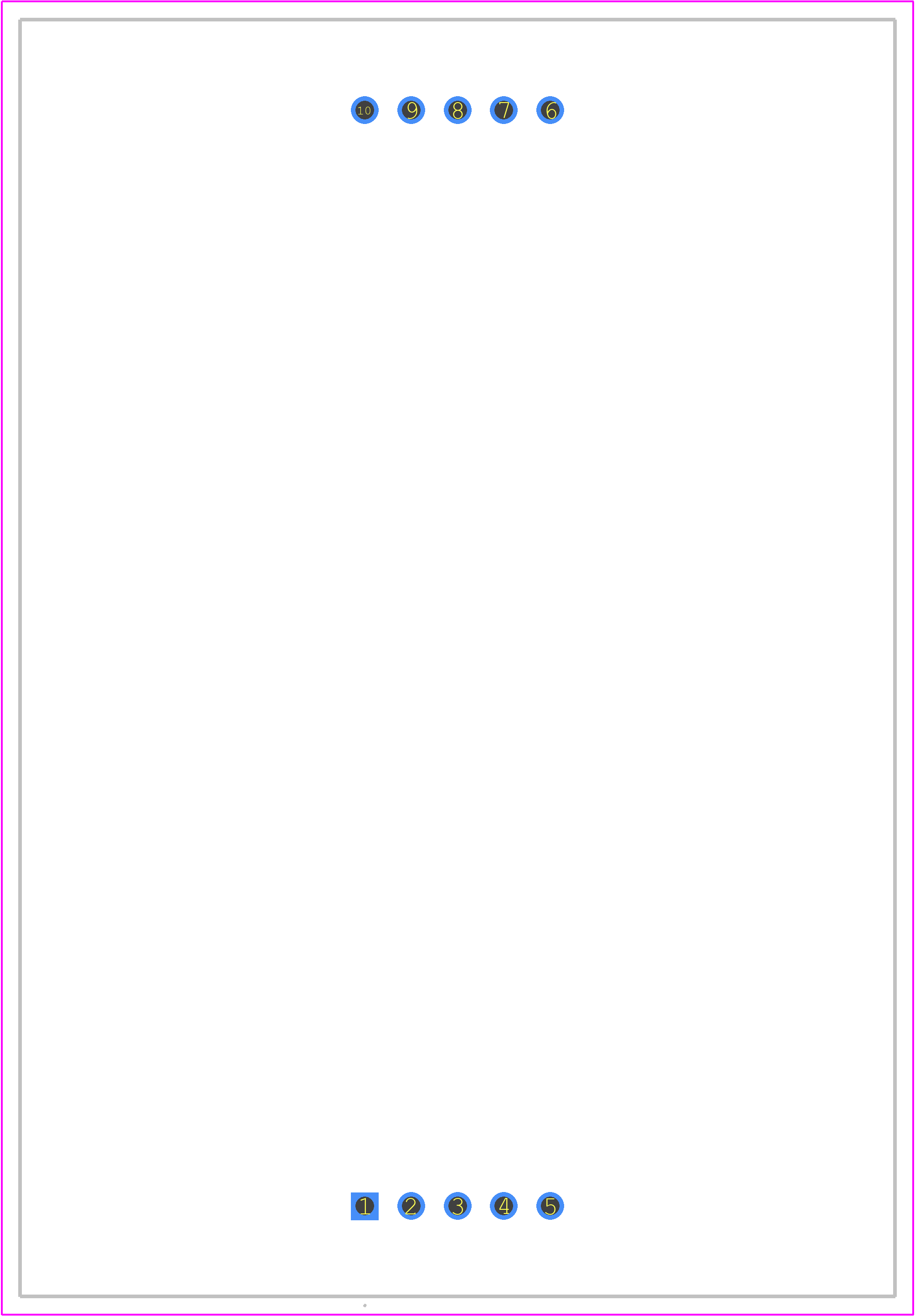

PCB Footprints

3D Models

SBA23-11EGWA Details

The recommended storage temperature for SBA23-11EGWA is -20°C to 30°C, with a relative humidity of 60% or less.
While SBA23-11EGWA is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from moisture and UV radiation. However, it's essential to follow proper encapsulation and sealing techniques to ensure reliability.
The maximum soldering temperature for SBA23-11EGWA is 260°C for 3 seconds. Exceeding this temperature can cause damage to the LED.
Yes, SBA23-11EGWA is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile to ensure reliable assembly.
The typical lifespan of SBA23-11EGWA is 50,000 hours or more, depending on operating conditions and usage. Proper thermal management and drive current control can help extend the lifespan.

Expert Contribution

System Verified

Community Approved

Use the download button to access the SBA23-11EGWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SBA23, or try a keyword search, such as LED Displays
