SBA56-21EGWA footprint, schematic symbol and 3D model by Kingbright

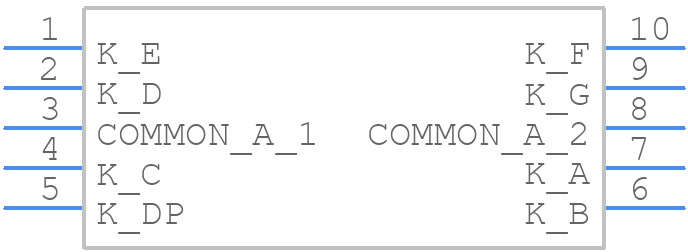

Symbol

PCB Footprints

3D Models

SBA56-21EGWA Details

The recommended storage temperature for SBA56-21EGWA is -20°C to 60°C, with a relative humidity of 60% or less.
While SBA56-21EGWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
The maximum soldering temperature for SBA56-21EGWA is 260°C for 3 seconds, with a peak temperature of 240°C.
Yes, SBA56-21EGWA is compatible with lead-free soldering, but the soldering profile should be adjusted according to the specific lead-free solder alloy used.
The typical lifespan of SBA56-21EGWA is 50,000 hours or more, depending on the operating conditions and usage.

Expert Contribution

System Verified

Community Approved

Use the download button to access the SBA56-21EGWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SBA56, or try a keyword search, such as LED Displays
