SC03-12EWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) 14-DIP (0.300", 7.62mm)

Download SC03-12EWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SC03-12EWA model

Email notifications will be applied after download.

Send part feedback

Symbol

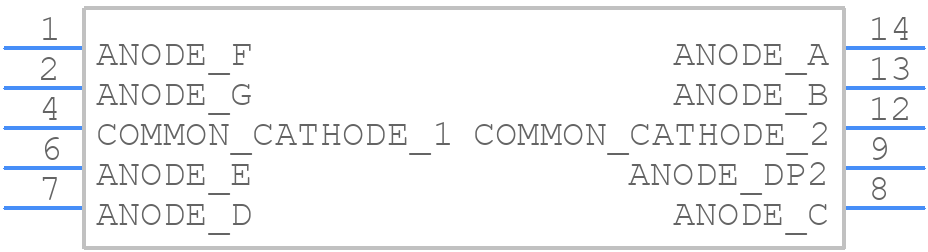

SC03-12EWA - Kingbright - PCB symbol

PCB Footprints

SC03-12EWA - Kingbright PCB footprint - Other - Other - SC03-12EWA

3D Models

SC03-12EWA - Kingbright - 3D model - Other - SC03-12EWA

Datasheet Download Datasheet
Stock & Prices Price & Stock for SC03-12EWA
Part Number SC03-12EWA
Manufacturer Kingbright
Pin Count 10
Part Category Display
Package Category Other
Footprint Name Other - SC03-12EWA
Released Date Dec 14, 2018
Last Modified Date Sep 24, 2025 9:45 AM UTC
Pinout / Pin List Click Here (Member Only)

SC03-12EWA Details

Manufacturer Part Number:
SC03-12EWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
ROHS COMPLIANT PACKAGE-14
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Additional Feature:
IC COMPATIBLE
Color:
HIGH EFFICIENCY RED
Color@Wavelength:
Red
Configuration:
COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
7.62 mm
Forward Current-Max:
0.03 A
JESD-609 Code:
e2
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
625 nm
Terminal Finish:
Tin/Copper (Sn/Cu)

SC03-12EWA Frequently Asked Questions (FAQs)

The recommended storage temperature range for the SC03-12EWA is -30°C to 60°C.
Yes, the SC03-12EWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from environmental factors like moisture and UV radiation.
The maximum forward current rating for the SC03-12EWA is 30mA. Exceeding this rating may reduce the LED's lifespan or cause damage.
Yes, the SC03-12EWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The typical viewing angle for the SC03-12EWA is 120°, but this can vary depending on the specific application and environmental conditions.
