- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SC03-12HDB
- Part Number SC03-12HDB
- Manufacturer Kingbright
- Pin Count 14
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - 14-DIP
- Released Date Aug 23, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SC03-12HDB Details
-
Manufacturer Part Number:
SC03-12HDB
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active Unconfirmed
-
Package Description:
ROHS COMPLIANT PACKAGE-14
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Kingbright
-
YTEOL:
2
-
Additional Feature:
IC COMPATIBLE
-
Color:
BRIGHT RED
SC03-12HDB Frequently Asked Questions (FAQs)
-
The recommended storage temperature for SC03-12HDB is -20°C to 60°C, with a relative humidity of 60% or less.
-
Yes, SC03-12HDB can be used in outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, UV, and extreme temperatures.
-
The maximum soldering temperature for SC03-12HDB is 260°C for 3 seconds, with a peak temperature of 240°C.
-
Yes, SC03-12HDB is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
-
The typical lifespan of SC03-12HDB is 50,000 hours or more, depending on the operating conditions and usage.
Trust Checks
Community Provided
System Verified
Community Approved
SC03-12HDB Overview

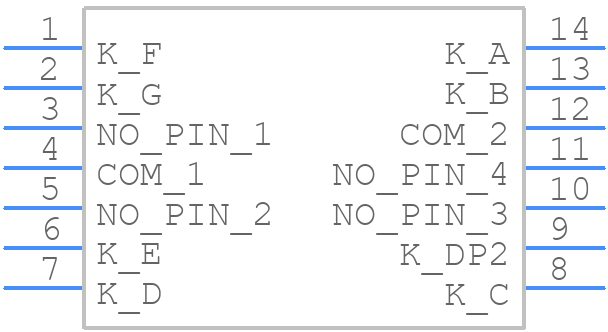

Use the download button to access the SC03-12HDB schematic symbol and PCB footprint.
