SC08-11SRWA - Kingbright

Description: KINGBRIGHT - SC08-11SRWA - LED DISPLAY, 0.8", RED, CC

Download SC08-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

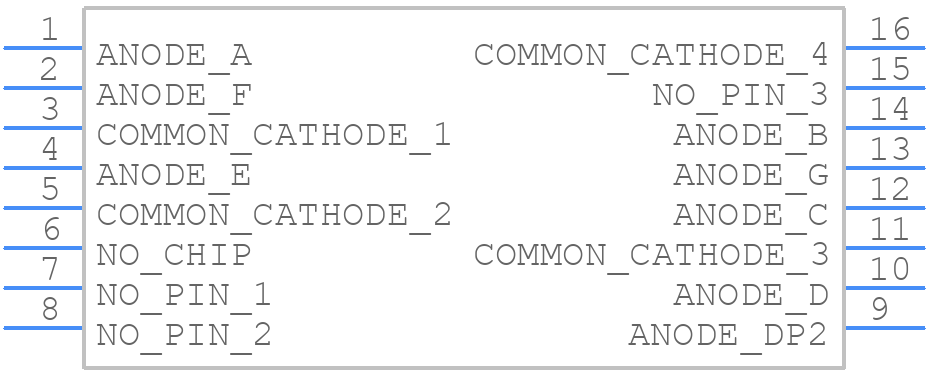

SC08-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

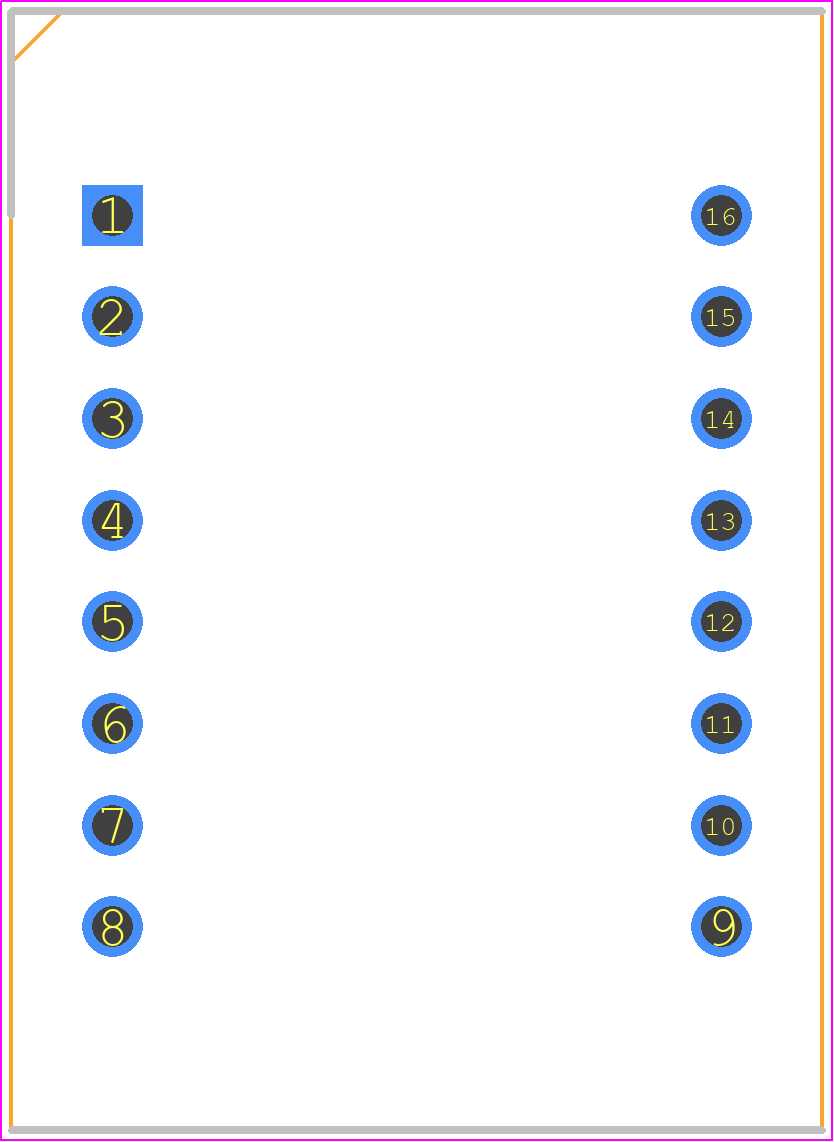

SC08-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 20.32mm (0.8INCH) SINGLE DIGIT NUMERIC DISPLAY_1
click to zoom

SC08-11SRWA Details

  • Manufacturer Part Number:

    SC08-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0.4

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC08-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC08-11SRWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
  • Yes, SC08-11SRWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for SC08-11SRWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, SC08-11SRWA is compatible with lead-free soldering, with a peak reflow temperature of 260°C (500°F) for a maximum of 10 seconds.
  • The typical viewing angle for SC08-11SRWA is 120°, but this can vary depending on the specific application and optical design.
