SC08-11SYKWA - Kingbright

Description: Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Cathode 2V 20mA 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) 16-DIP (0.600", 15.24mm), 13 Leads

Download SC08-11SYKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

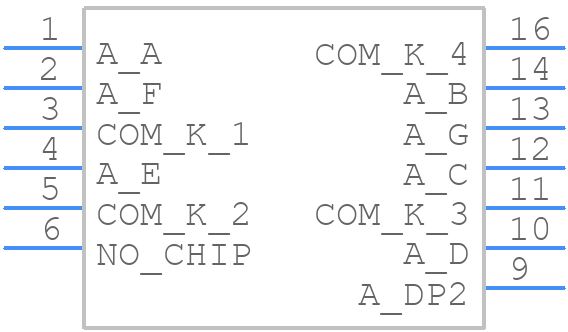

SC08-11SYKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

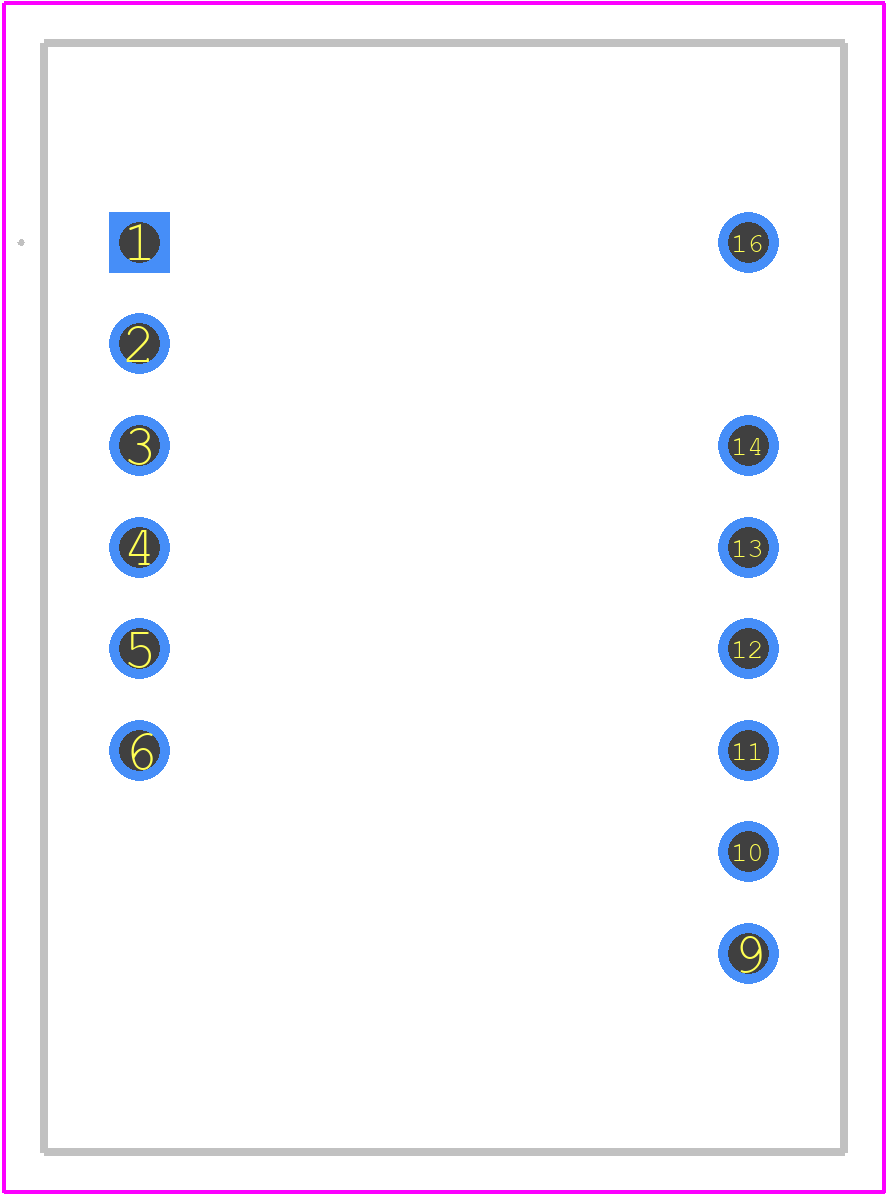

SC08-11SYKWA - Kingbright PCB footprint - Other - Other - SC08-11SYKWA-2
click to zoom
3D Models
SC08-11SYKWA - Kingbright - 3D model - Other - SC08-11SYKWA-2
click to zoom

SC08-11SYKWA Details

  • Manufacturer Part Number:

    SC08-11SYKWA

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    SUPER BRIGHT YELLOW

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC08-11SYKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC08-11SYKWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, SC08-11SYKWA can be used in outdoor applications, but it's essential to ensure proper sealing and protection from moisture, UV, and extreme temperatures.
  • The typical junction temperature of SC08-11SYKWA is 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
  • Yes, SC08-11SYKWA is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile to avoid damage.
  • The recommended reflow soldering temperature profile for SC08-11SYKWA is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.
