SC08-21GWA - Kingbright

Description: LED Displays & Accessories Single Green 568nm Common Cathode

Download SC08-21GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

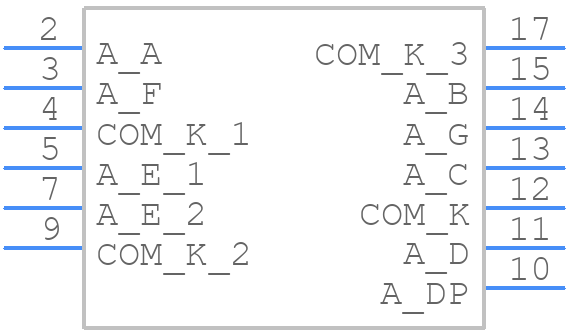

SC08-21GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

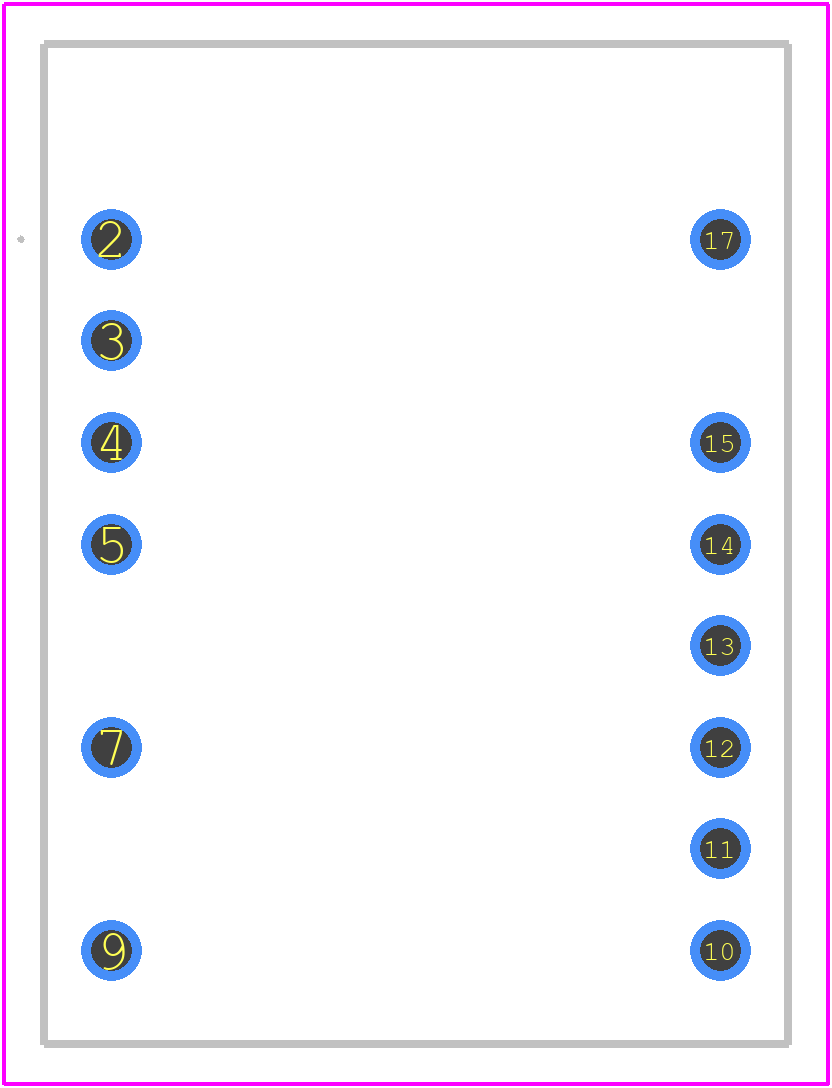

SC08-21GWA - Kingbright PCB footprint - Other - Other - SC08-21GWA-1
click to zoom
3D Models
SC08-21GWA - Kingbright - 3D model - Other - SC08-21GWA-1
click to zoom

SC08-21GWA Details

  • Manufacturer Part Number:

    SC08-21GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC08-21GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC08-21GWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, SC08-21GWA can be used in outdoor applications, but it's essential to ensure proper sealing and protection from moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SC08-21GWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SC08-21GWA is compatible with lead-free soldering, but it's essential to follow the recommended soldering profile to avoid damage.
  • The typical lifespan of SC08-21GWA is around 50,000 hours, depending on operating conditions, such as temperature, humidity, and drive current.
