SC10-11EWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 4V 20mA 1.295" H x 0.886" W x 0.335" D (32.90mm x 22.50mm x 8.50mm) 14-DIP (0.600", 15.24mm), 11 Leads

Download SC10-11EWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SC10-11EWA model

Email notifications will be applied after download.

Send part feedback

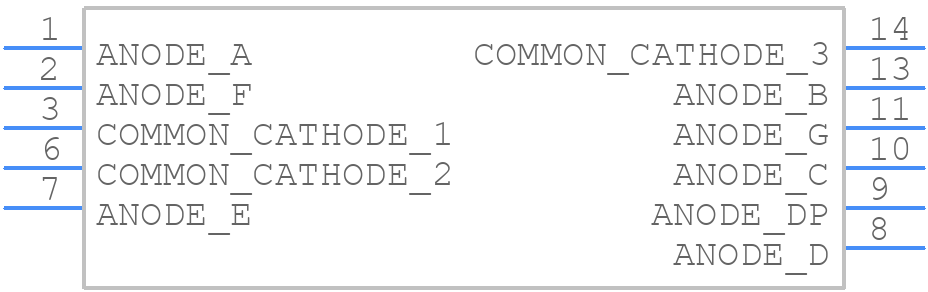

Symbol

SC10-11EWA - Kingbright - PCB symbol

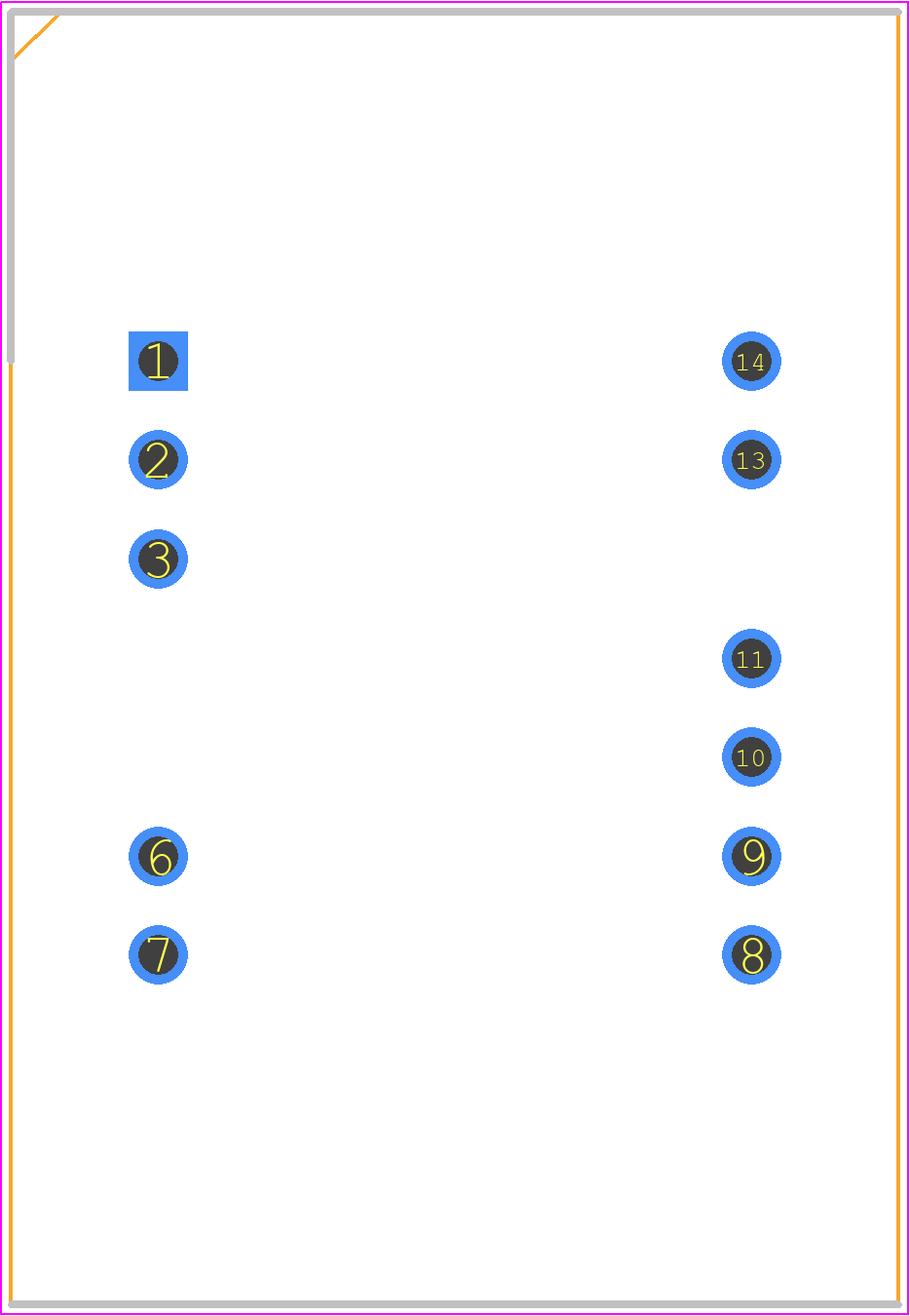

PCB Footprints

SC10-11EWA - Kingbright PCB footprint - Other - Other - SC10-11EWA

3D Models

SC10-11EWA - Kingbright - 3D model - Other - SC10-11EWA

Datasheet Download Datasheet
Stock & Prices Price & Stock for SC10-11EWA
Part Number SC10-11EWA
Manufacturer Kingbright
Pin Count 11
Part Category Display
Package Category Other
Footprint Name Other - SC10-11EWA
Released Date May 21, 2018
Last Modified Date Apr 17, 2025 8:59 AM UTC
Pinout / Pin List Click Here (Member Only)

SC10-11EWA Details

Manufacturer Part Number:
SC10-11EWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
ROHS COMPLIANT PACKAGE-14
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Additional Feature:
IC COMPATIBLE
Color:
HIGH EFFICIENCY RED
Color@Wavelength:
Orange
Configuration:
COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
26 mm
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
627 nm

SC10-11EWA Frequently Asked Questions (FAQs)

The recommended storage temperature for SC10-11EWA is -20°C to 60°C, with a relative humidity of 60% or less.
Yes, SC10-11EWA is suitable for outdoor applications, but it's recommended to use a protective coating or encapsulation to prevent moisture ingress and ensure reliability.
The maximum soldering temperature for SC10-11EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
Yes, SC10-11EWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles.
The typical lifespan of SC10-11EWA is 50,000 hours or more, depending on the operating conditions and usage.

Trust Checks

Expert Contribution

System Verified

Community Approved

SC10-11EWA Overview

Use the download button to access the SC10-11EWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SC10-, or try a keyword search, such as LED Displays
