SC10-21CGKWA - Kingbright

Description: Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 4.2V 20mA 1.339" H x 0.551" W x 0.413" D (34.00mm x 14.00mm x 10.50mm) 10-DIP (1.197", 30.40mm)

Download SC10-21CGKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SC10-21CGKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

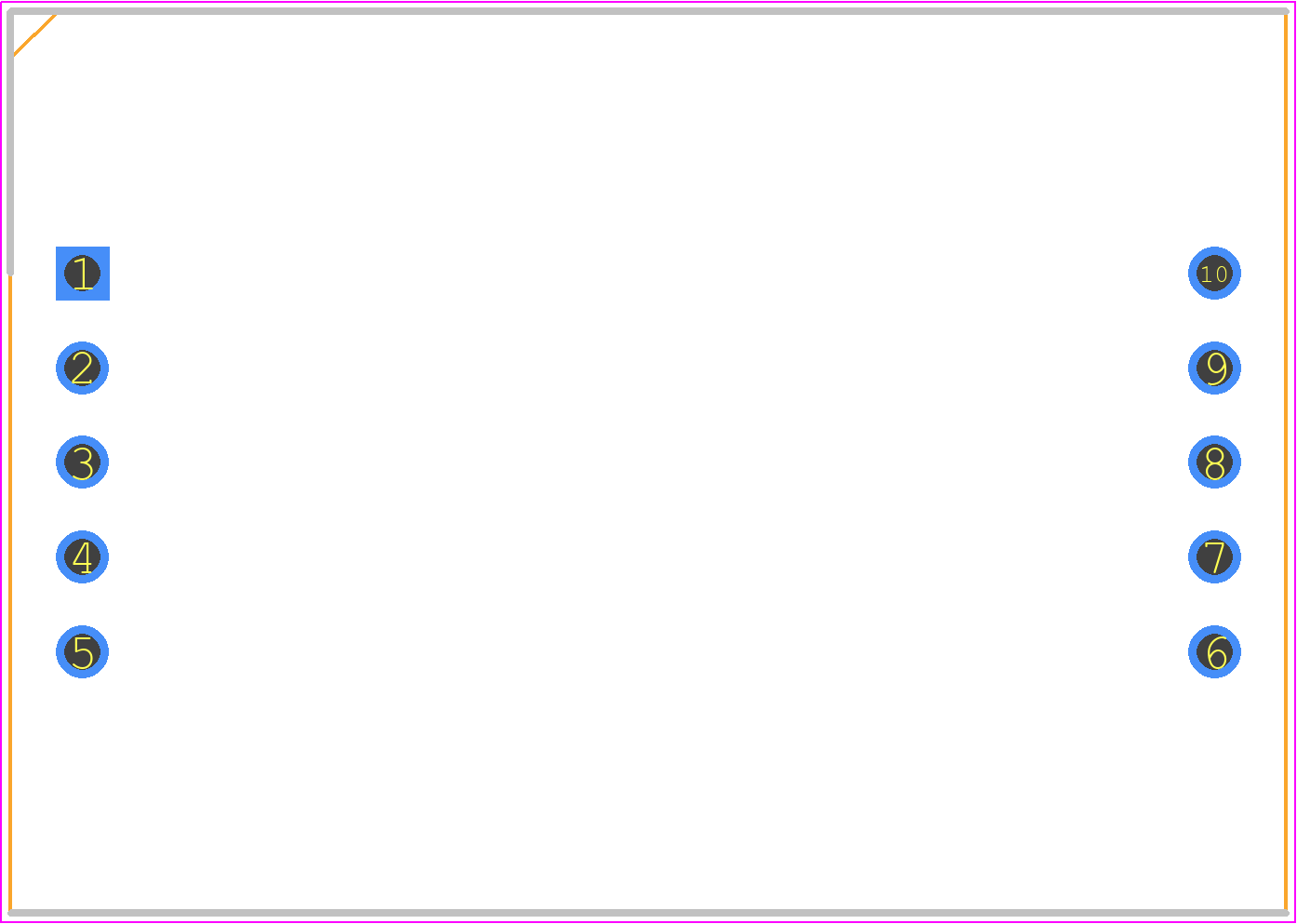

SC10-21CGKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-PIN DIP
click to zoom
3D Models
SC10-21CGKWA - Kingbright - 3D model - Dual-In-Line Sockets - 10-PIN DIP
click to zoom

SC10-21CGKWA Details

  • Manufacturer Part Number:

    SC10-21CGKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    GREEN

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    25.4 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC10-21CGKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC10-21CGKWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • Yes, SC10-21CGKWA can be used in outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SC10-21CGKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SC10-21CGKWA is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliability and performance.
  • The typical lifespan of SC10-21CGKWA is 50,000 hours or more, depending on the operating conditions and usage.
