SC10-21SURKWA - Kingbright

Description: DISPLAY, 1.0" CMN CATHODE, RED; LED Color:Red; Forward Current If:20mA; Forward Voltage:3.9V; Luminous Intensity:260mcd; No. of Digits / Alpha:1; Character Size:25.4mm; Common Connection:Common Cathode; Product Range:- RoHS Compliant: Yes

Download SC10-21SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SC10-21SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

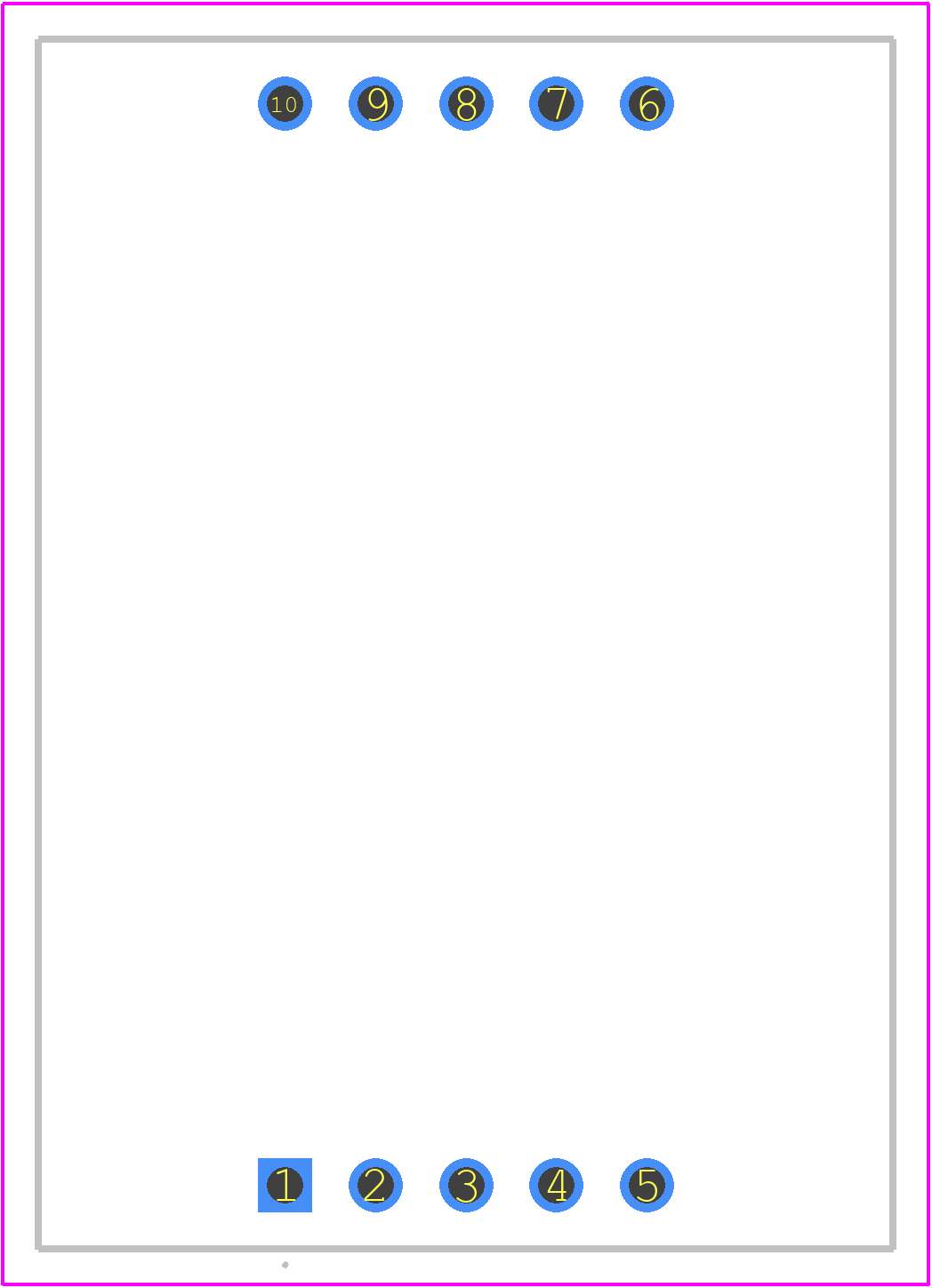

SC10-21SURKWA - Kingbright PCB footprint - Other - Other - SC10-21SURKWA-5
click to zoom
3D Models
SC10-21SURKWA - Kingbright - 3D model - Other - SC10-21SURKWA-5
click to zoom

SC10-21SURKWA Details

  • Manufacturer Part Number:

    SC10-21SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    25.4 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC10-21SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the SC10-21SURKWA is -30°C to 80°C, with a relative humidity of 60% or less.
  • Yes, the SC10-21SURKWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum soldering temperature for the SC10-21SURKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, the SC10-21SURKWA is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile to ensure reliable connections.
  • The typical lifespan of the SC10-21SURKWA is around 50,000 hours, depending on the operating conditions, such as temperature, humidity, and drive current.
