SC15-11SRWA - Kingbright

Description: 38mm (1.5INCH) SINGLE DIGIT NUMERIC DISPLAY

Download SC15-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

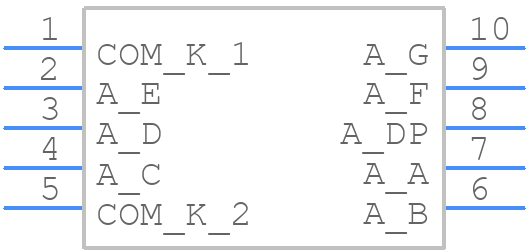

Symbol
SC15-11SRWA - Kingbright - PCB symbol
click to zoom

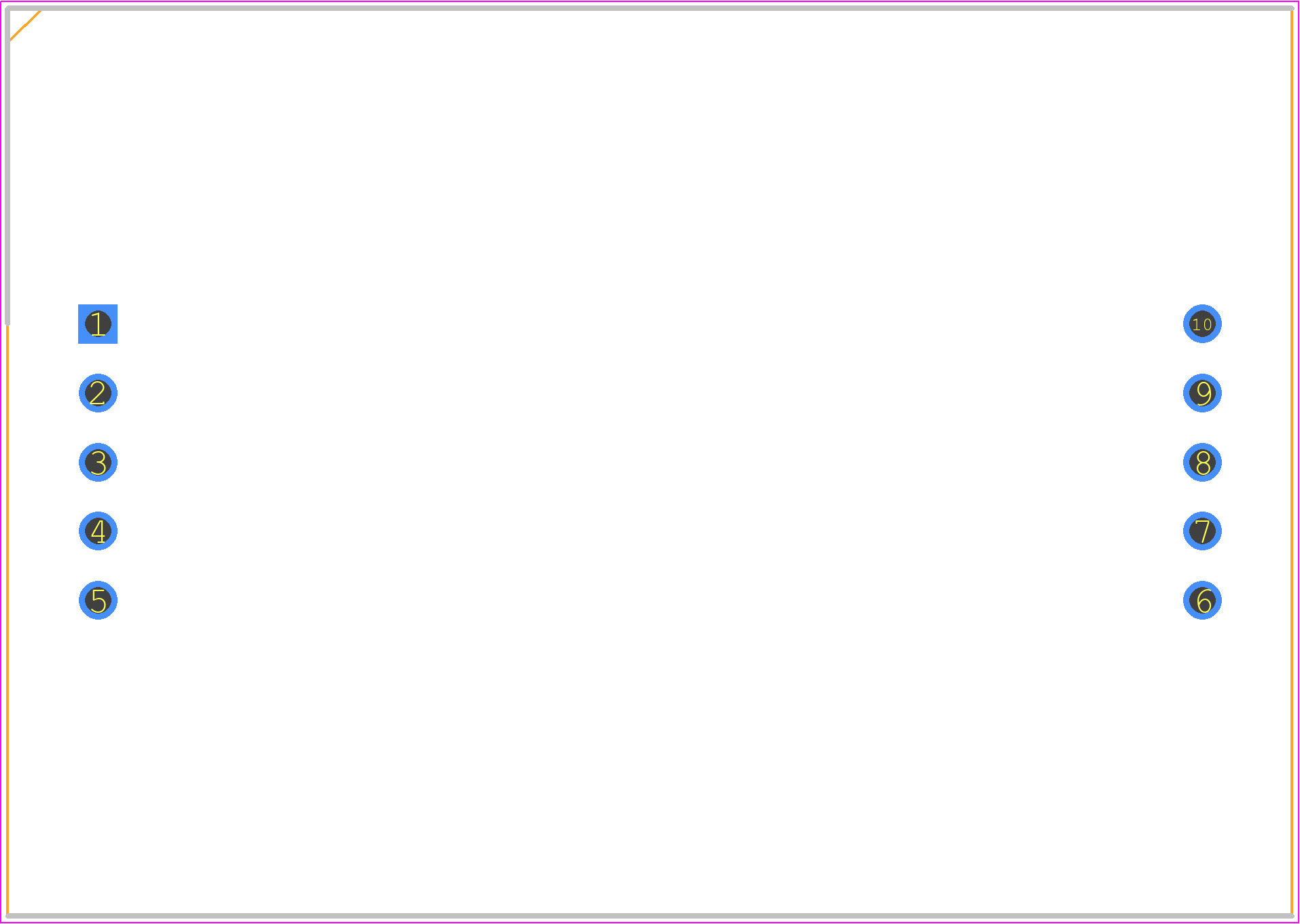

PCB Footprints
SC15-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 33.15mmx47mmx12.5mm
click to zoom

SC15-11SRWA Details

  • Manufacturer Part Number:

    SC15-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    38.1 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

SC15-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC15-11SRWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, SC15-11SRWA is suitable for outdoor applications due to its water-resistant epoxy resin and silicone sealant, but it's essential to follow proper installation and sealing guidelines to maintain its IP67 rating.
  • The maximum forward current for SC15-11SRWA is 30mA, but it's recommended to operate it at a lower current (e.g., 20mA) to ensure a longer lifespan and reduce heat generation.
  • Yes, SC15-11SRWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) for a maximum of 10 seconds.
  • The typical luminous intensity of SC15-11SRWA is 4500-5500 mcd (millicandelas) at a viewing angle of 30°, but this value can vary depending on the specific LED batch and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC15-11SRWA Overview

Use the download button to access the SC15-11SRWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SC15-, or try a keyword search, such as LED Displays
