SC2200A-00A00 - Analog Devices

Description: ● Frequency Range: 698MHz–2700MHz ● Integrated Preamp and Single-Ended RF I/Os ● Single +1.8V Supply Voltage ● External Reference Clock Support: • 10, 13, 15.36, 19.2, 20, 26, and 30.72MHz ● Packaged in 11mm x 11mm SAWN QFN Package ● Operating Case Temperature: -40°C to +100°C ● RoHS, Green, REACH, and ISO9001 Compliant ● Dual-Path RFIN/RFOUT Linearizer in CMOS SoC

Download SC2200A-00A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SC2200A-00A00 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

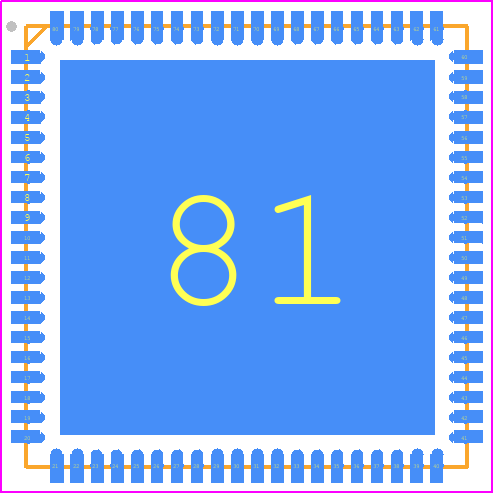

SC2200A-00A00 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 80-LFCSP-11X11X0.85
click to zoom
3D Models
SC2200A-00A00 - Analog Devices - 3D model - Quad Flat No-Lead - 80-LFCSP-11X11X0.85
click to zoom

SC2200A-00A00 Details

  • Manufacturer Part Number:

    SC2200A-00A00

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC2200A-00A00 Overview

Use the download button to access the SC2200A-00A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC220, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
