SC23-11EWA - Kingbright

Description: Kingbright SC23-11EWA 7-Segment LED Display, CC Red 57 mcd RH DP 57mm

Download SC23-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

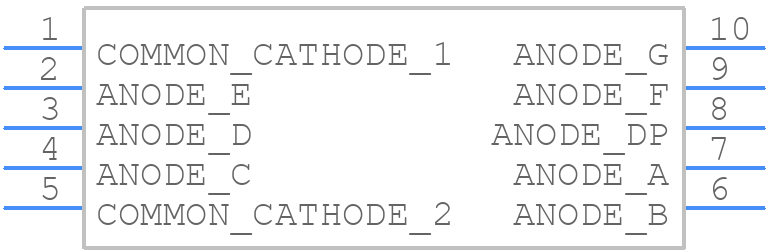

SC23-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

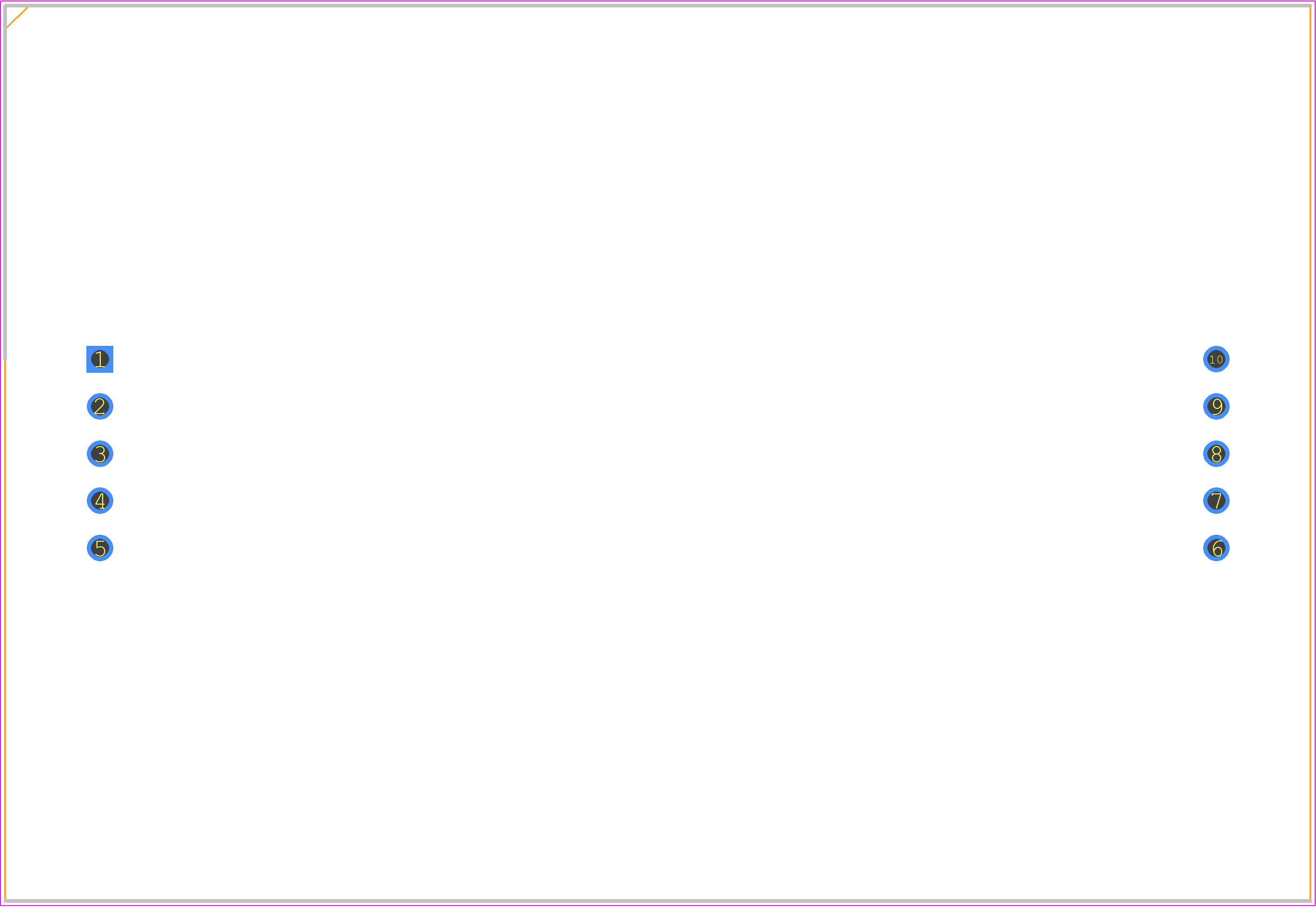

SC23-11EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SC23-11EWA
click to zoom
3D Models
SC23-11EWA - Kingbright - 3D model - Dual-In-Line Sockets - SC23-11EWA
click to zoom

SC23-11EWA Details

  • Manufacturer Part Number:

    SC23-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    56.9 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC23-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC23-11EWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, SC23-11EWA can be used in outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from moisture and UV radiation.
  • The maximum soldering temperature for SC23-11EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SC23-11EWA is compatible with lead-free soldering, but the soldering temperature and time should be adjusted according to the specific lead-free soldering process.
  • The recommended operating temperature range for SC23-11EWA is -20°C to 80°C, but the LED's performance and lifespan may be affected at extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC23-11EWA Overview

Use the download button to access the SC23-11EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC23-, or try a keyword search, such as LED Displays
