SC23-11SRWA - Kingbright

Description: LED Displays & Accessories Single Red 640nm Common Cathode

Download SC23-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

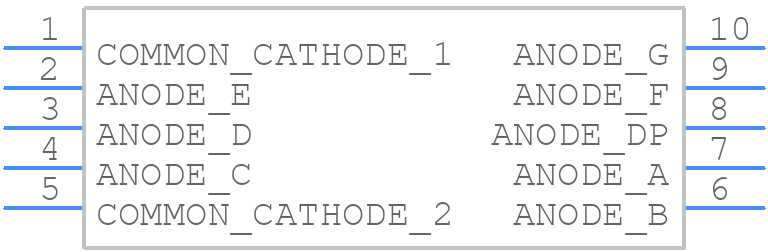

SC23-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

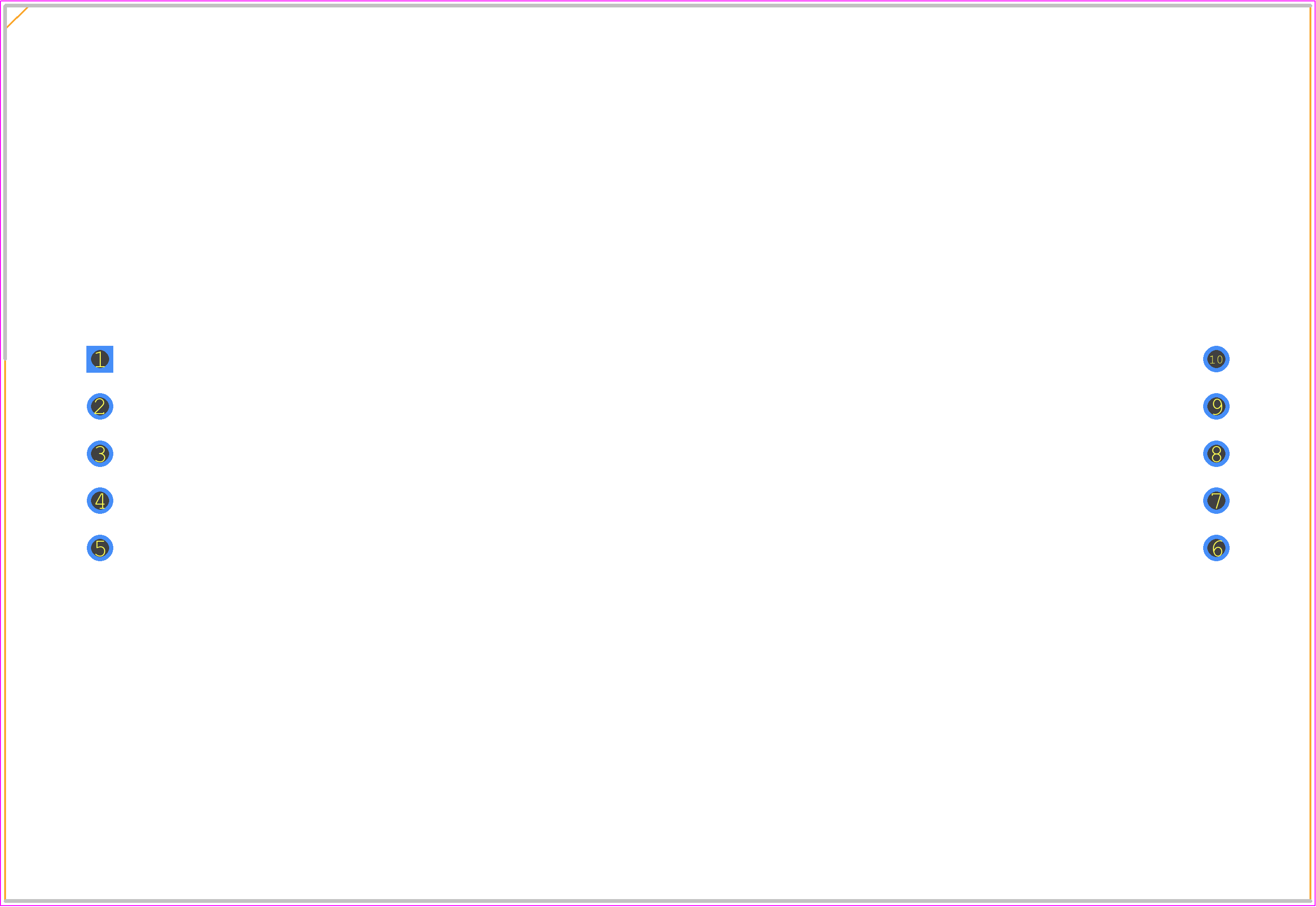

SC23-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SC23-11SRWA
click to zoom

SC23-11SRWA Details

  • Manufacturer Part Number:

    SC23-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    57 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC23-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC23-11SRWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, SC23-11SRWA is suitable for outdoor applications due to its high luminous intensity and wide operating temperature range. However, it's recommended to use a suitable enclosure to protect the LED from environmental factors such as moisture and UV radiation.
  • The maximum forward current that can be applied to SC23-11SRWA is 30mA. Exceeding this current may reduce the LED's lifespan or cause it to fail prematurely.
  • Yes, SC23-11SRWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The typical viewing angle of SC23-11SRWA is 120°, which means the LED's luminous intensity is maintained within 50% of its peak value at an angle of 60° from the center of the LED.
