SC23-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 3.7V, 7.4V 10mA 2.756" H x 1.890" W x 0.482" D (70.00mm x 48.00mm x 12.25mm) 10-DIP (2.366", 60.10mm)

Download SC23-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

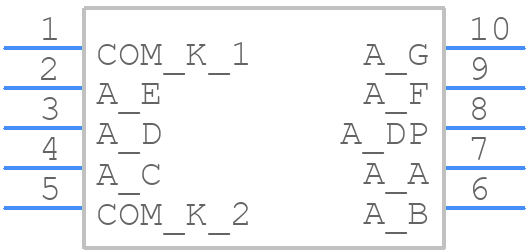

SC23-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

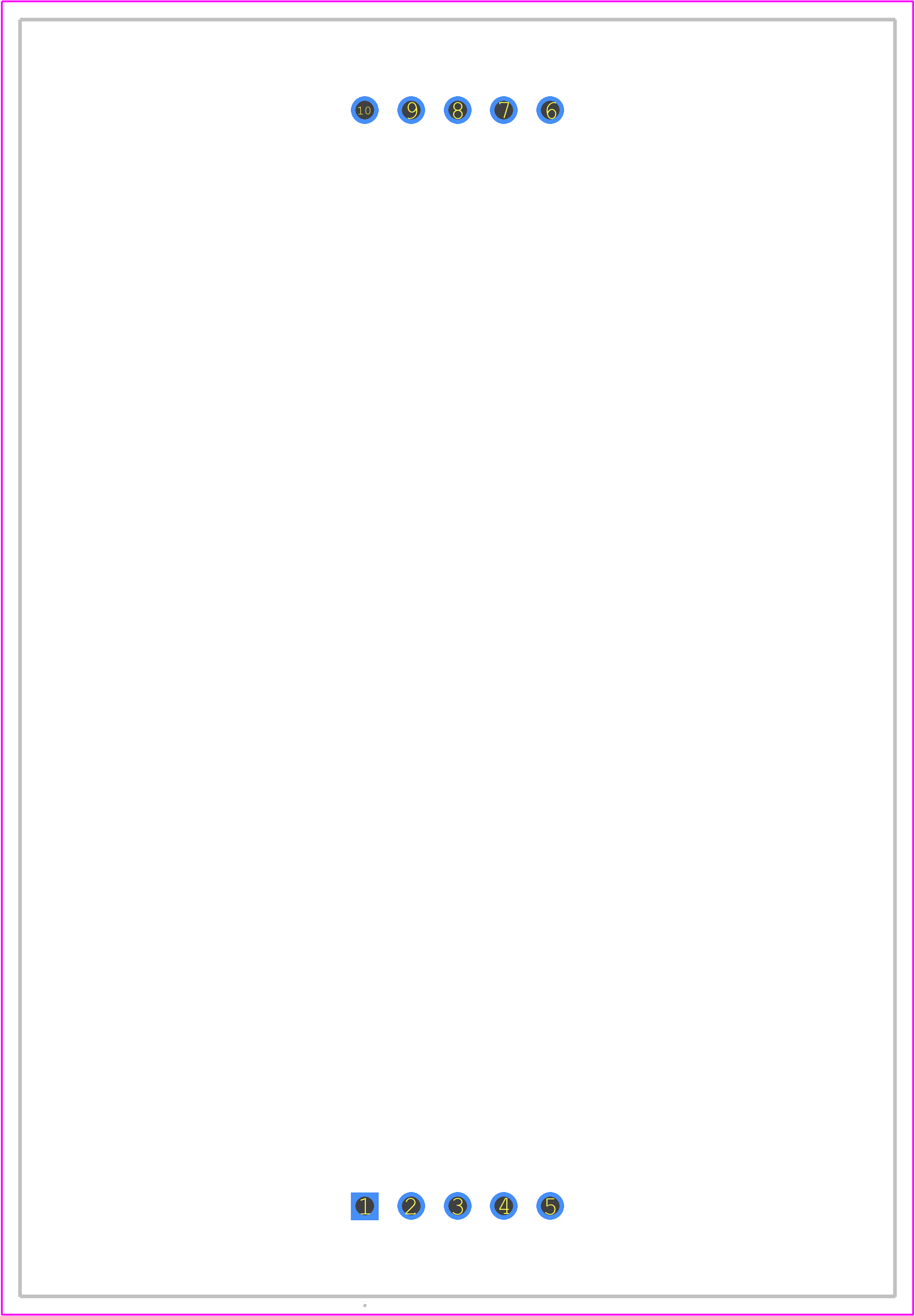

SC23-11SURKWA - Kingbright PCB footprint - Other - Other - DIP-10
click to zoom
3D Models
SC23-11SURKWA - Kingbright - 3D model - Other - DIP-10
click to zoom

SC23-11SURKWA Details

  • Manufacturer Part Number:

    SC23-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    56.9 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC23-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC23-11SURKWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, SC23-11SURKWA is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors such as moisture and UV radiation.
  • The typical forward voltage drop for SC23-11SURKWA is around 2.0-2.5V, but it can vary depending on the operating current and temperature.
  • Yes, SC23-11SURKWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The maximum allowable current for SC23-11SURKWA is 30mA, but it's recommended to operate within the specified operating current range for optimal performance and lifespan.
