SC32-11GWA - Kingbright

Description: 7-Seg Display 1-Digit 8mm Green Kingbright SC32-11GWA 7-Segment LED Display, CC Green 7.1 mcd RH DP 8mm

Download SC32-11GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

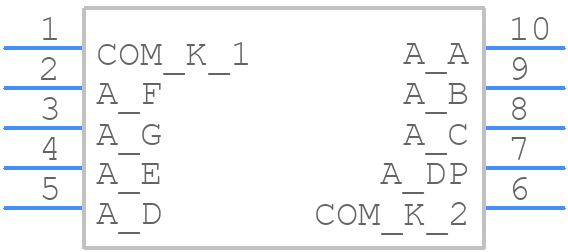

SC32-11GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

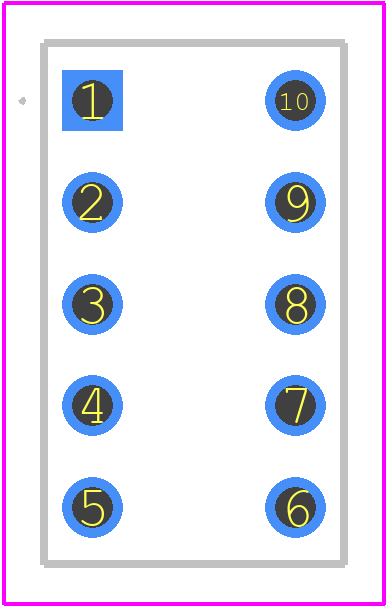

SC32-11GWA - Kingbright PCB footprint - Other - Other - SC32-11GWA-1
click to zoom
3D Models
SC32-11GWA - Kingbright - 3D model - Other - SC32-11GWA-1
click to zoom

SC32-11GWA Details

  • Manufacturer Part Number:

    SC32-11GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    8 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC32-11GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC32-11GWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, SC32-11GWA can be used in outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, dust, and UV radiation.
  • The maximum soldering temperature for SC32-11GWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SC32-11GWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
  • The typical lifespan of SC32-11GWA is 50,000 hours or more, depending on the operating conditions and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC32-11GWA Overview

Use the download button to access the SC32-11GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC32-, or try a keyword search, such as LED Displays

Parts related to SC32-11GWA
