SC32-11SRWA - Kingbright

Description: 7-Seg Display 1-Digit 8mm Red Kingbright SC32-11SRWA 7-Segment LED Display, CC Red 31 mcd RH DP 8mm

Download SC32-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

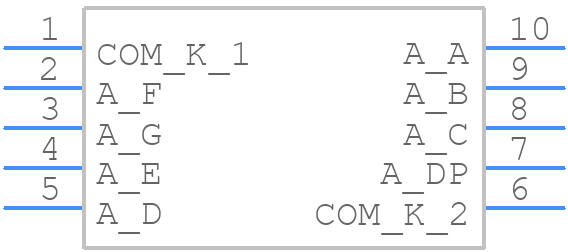

SC32-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

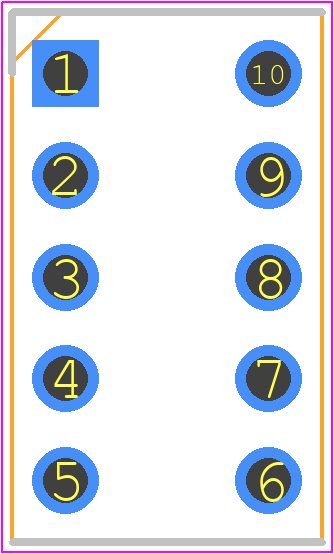

SC32-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 8 mm (0.32 inch) Single Digit Numeric Display
click to zoom

SC32-11SRWA Details

  • Manufacturer Part Number:

    SC32-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    8 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC32-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC32-11SRWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
  • Yes, SC32-11SRWA is suitable for outdoor applications, but it's recommended to use a protective coating or encapsulation to prevent moisture ingress and ensure reliability.
  • The maximum forward current for SC32-11SRWA is 30mA. Exceeding this current may reduce the LED's lifespan or cause damage.
  • Yes, SC32-11SRWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) for a maximum of 10 seconds.
  • The typical viewing angle for SC32-11SRWA is 120°, but this can vary depending on the specific application and optical design.
