SC39-11EWA - Kingbright

Description: LED Displays & Accessories Single Red 625nm Common Cathode

Download SC39-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

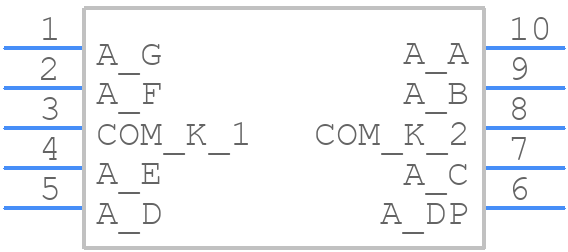

SC39-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints
SC39-11EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP10
click to zoom
3D Models
SC39-11EWA - Kingbright - 3D model - Dual-In-Line Sockets - DIP10
click to zoom

SC39-11EWA Details

  • Manufacturer Part Number:

    SC39-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.9 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC39-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC39-11EWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, SC39-11EWA can be used in outdoor applications, but it's recommended to use a suitable enclosure to protect it from direct sunlight, moisture, and extreme temperatures.
  • The maximum soldering temperature for SC39-11EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SC39-11EWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles.
  • The typical luminous intensity of SC39-11EWA is 12,000 mcd, with a viewing angle of 30°.
