SC39-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.95V 20mA 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) 10-DIP (0.300", 7.62mm)

Download SC39-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

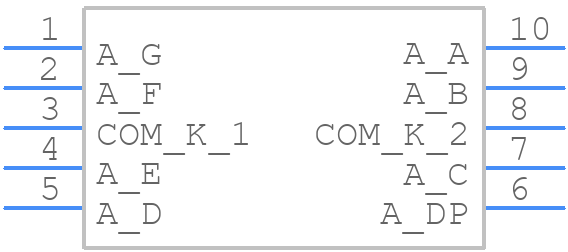

SC39-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

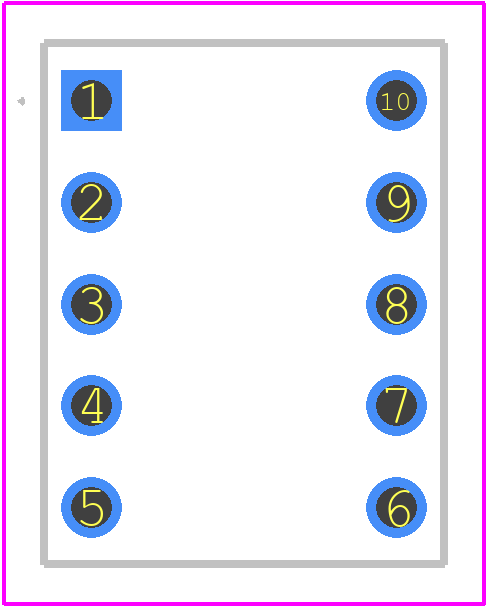

SC39-11SURKWA - Kingbright PCB footprint - Other - Other - 10-DIP_2025-1.8
click to zoom
3D Models
SC39-11SURKWA - Kingbright - 3D model - Other - 10-DIP_2025-1.8
click to zoom

SC39-11SURKWA Details

  • Manufacturer Part Number:

    SC39-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.9 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC39-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 260°C to 280°C for a maximum of 3 seconds.
  • Yes, the SC39-11SURKWA is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture ingress.
  • The maximum allowable voltage is 3.5V, exceeding this voltage may reduce the LED's lifespan or cause damage.
  • Store the SC39-11SURKWA in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads during transportation.
  • Yes, the SC39-11SURKWA is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC39-11SURKWA Overview

Use the download button to access the SC39-11SURKWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC39-, or try a keyword search, such as LED Displays
