Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SC39-12EWA
- Part Number SC39-12EWA
- Manufacturer Kingbright
- Pin Count 10
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - 10-DIP (0.300", 7.62mm)_2021
- Released Date Mar 5, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SC39-12EWA Details
-
Manufacturer Part Number:
SC39-12EWA
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT PACKAGE-10
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Kingbright
-
YTEOL:
6
-
Additional Feature:
IC COMPATIBLE
-
Color:
HIGH EFFICIENCY RED
SC39-12EWA Frequently Asked Questions (FAQs)
-
The recommended storage temperature for SC39-12EWA is -20°C to 40°C (-4°F to 104°F) to prevent damage to the LED.
-
While SC39-12EWA is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV radiation, and extreme temperatures.
-
The maximum soldering temperature for SC39-12EWA is 260°C (500°F) for 3 seconds or less to prevent damage to the LED or its internal components.
-
Yes, SC39-12EWA is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile to ensure reliable assembly.
-
The typical lifespan of SC39-12EWA is around 50,000 hours or more, depending on operating conditions, such as temperature, current, and environmental factors.
Trust Checks
Community Provided
System Verified
Community Approved
SC39-12EWA Overview

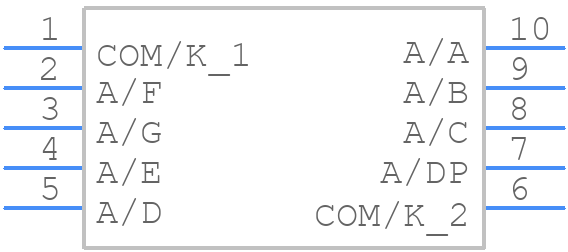

Use the download button to access the SC39-12EWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SC39-,
or try a keyword search, such as LED Displays
