SC39-12GWA - Kingbright

Description: Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2.2V 20mA 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) 10-DIP (0.300", 7.62mm)

Download SC39-12GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

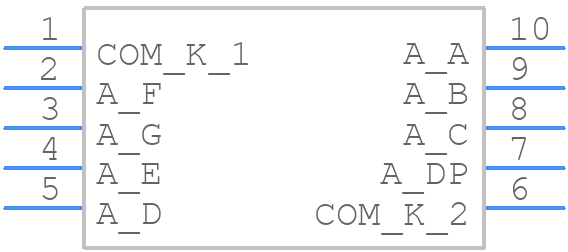

SC39-12GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

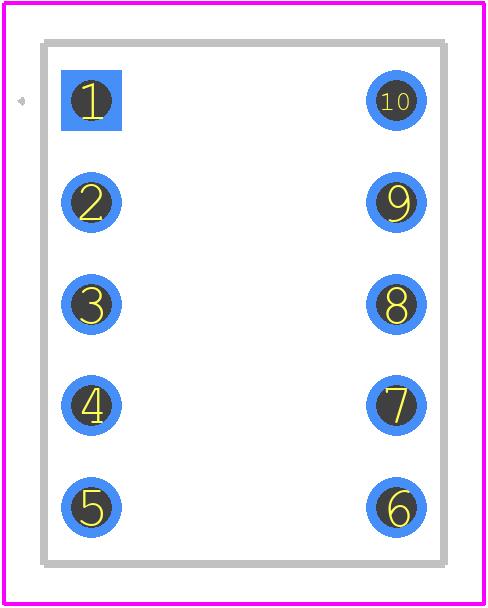

SC39-12GWA - Kingbright PCB footprint - Other - Other - 10-DIP_2025-1.1
click to zoom
3D Models
SC39-12GWA - Kingbright - 3D model - Other - 10-DIP_2025-1.1
click to zoom

SC39-12GWA Details

  • Manufacturer Part Number:

    SC39-12GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.9 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC39-12GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC39-12GWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, SC39-12GWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum forward current for SC39-12GWA is 30mA, but it's recommended to operate at 20mA or less for optimal performance and lifespan.
  • Yes, SC39-12GWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The typical luminous intensity of SC39-12GWA is 12,000-14,000 mcd, but this can vary depending on the specific batch and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC39-12GWA Overview

Use the download button to access the SC39-12GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC39-, or try a keyword search, such as LED Displays
