SC52-11LSRWA - Kingbright

Description: KINGBRIGHT - SC52-11LSRWA - LED, DISPLAY, 0.52", H-RED, COMM.CATH.

Download SC52-11LSRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

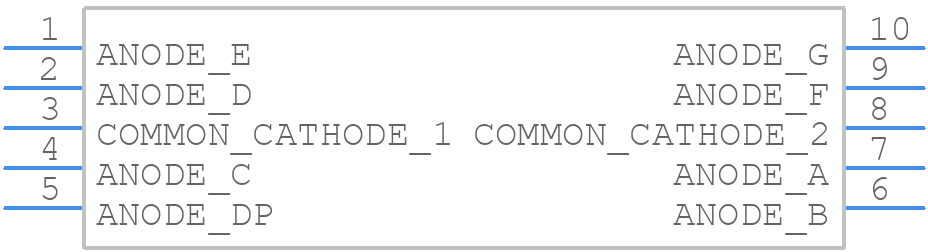

SC52-11LSRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints
SC52-11LSRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 13.2mm(0.52INCH) SINGLE DIGIT NUMERIC DISPLAY
click to zoom

SC52-11LSRWA Details

  • Manufacturer Part Number:

    SC52-11LSRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    13 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC52-11LSRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC52-11LSRWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • While SC52-11LSRWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SC52-11LSRWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SC52-11LSRWA is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliability.
  • The typical lifespan of SC52-11LSRWA is around 50,000 hours, depending on operating conditions, temperature, and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC52-11LSRWA Overview

Use the download button to access the SC52-11LSRWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SC52-, or try a keyword search, such as LED Displays
