SC52-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.85V 10mA 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) 10-DIP (0.600", 15.24mm)

Download SC52-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SC52-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

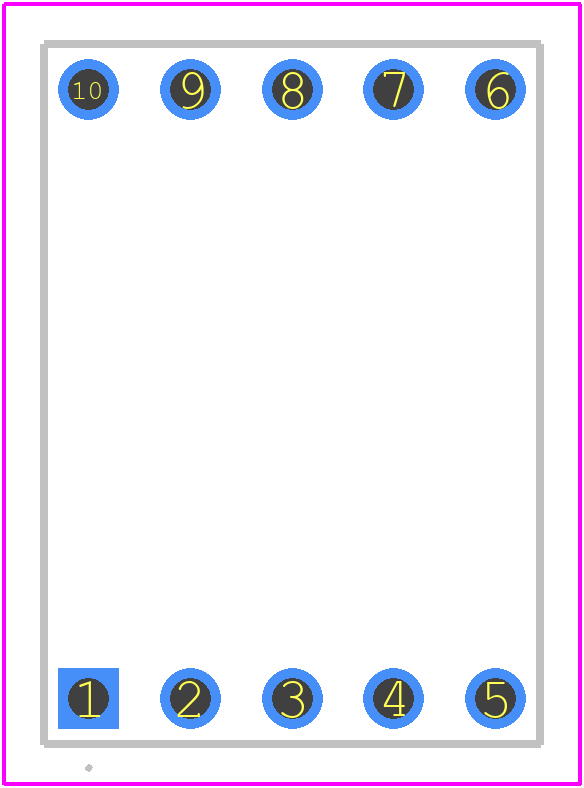

SC52-11SURKWA - Kingbright PCB footprint - Other - Other - SC52-11SURKWA-2
click to zoom
3D Models
SC52-11SURKWA - Kingbright - 3D model - Other - SC52-11SURKWA-2
click to zoom

SC52-11SURKWA Details

  • Manufacturer Part Number:

    SC52-11SURKWA

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    13.2 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC52-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC52-11SURKWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, SC52-11SURKWA is suitable for outdoor applications due to its high brightness and IP67 rating, which provides protection against dust and water ingress.
  • The typical forward voltage drop for SC52-11SURKWA is around 2.0-2.5V, depending on the operating current and temperature.
  • Yes, SC52-11SURKWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The recommended operating temperature range for SC52-11SURKWA is -40°C to 85°C, with a derating of luminous intensity above 60°C.
