SC56-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.95V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)

Download SC56-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SC56-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

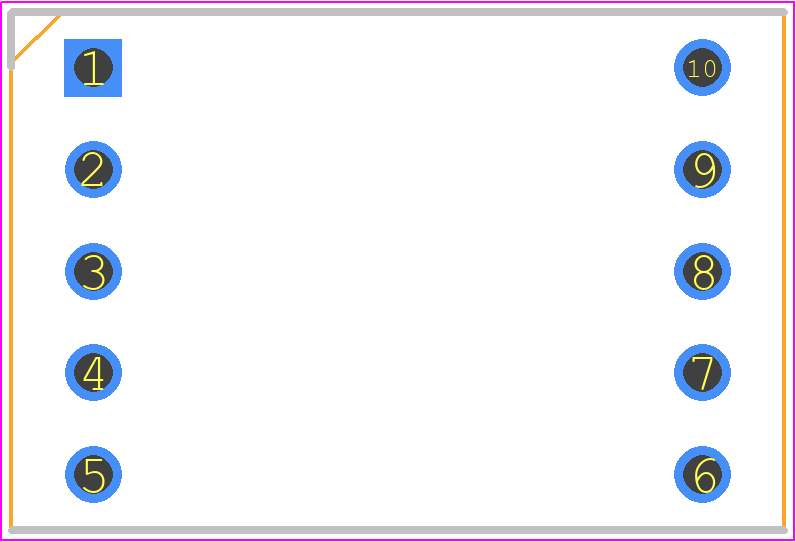

SC56-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12.7mmx19.05mmx8.00mm
click to zoom
3D Models
SC56-11SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - 12.7mmx19.05mmx8.00mm
click to zoom

SC56-11SURKWA Details

  • Manufacturer Part Number:

    SC56-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC56-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC56-11SURKWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • While the SC56-11SURKWA is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SC56-11SURKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, the SC56-11SURKWA is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for lead-free and hazardous substance-free components.
  • The typical forward voltage drop for SC56-11SURKWA is 2.0-2.5V at a forward current of 20mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC56-11SURKWA Overview

Use the download button to access the SC56-11SURKWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC56-, or try a keyword search, such as LED Displays
