SC56-11SYKWA footprint, schematic symbol and 3D model by Kingbright

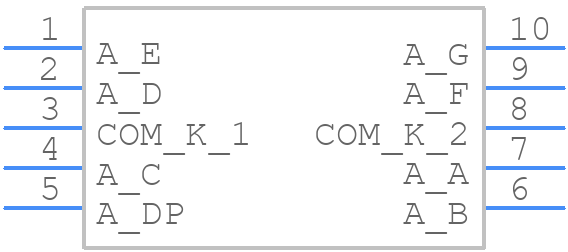

Symbol

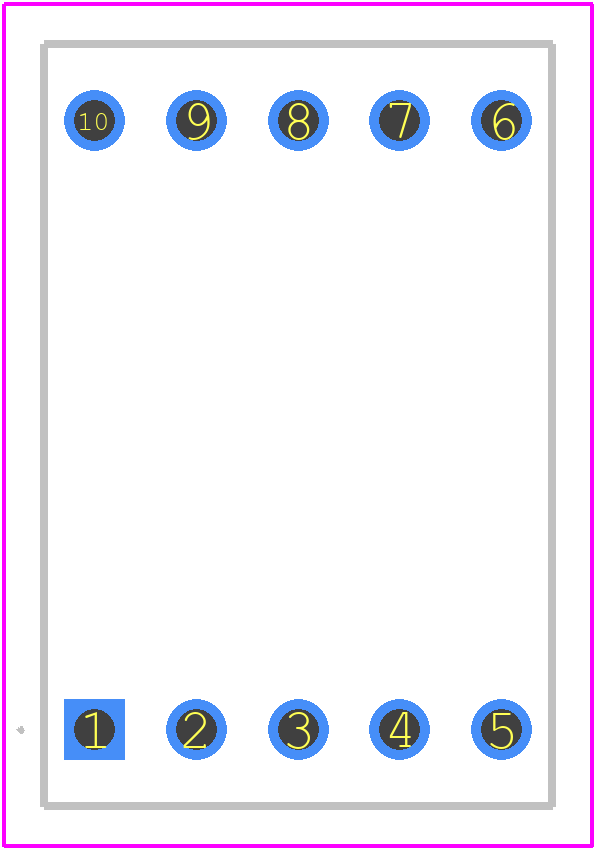

PCB Footprints

3D Models

SC56-11SYKWA Details

The recommended storage temperature for SC56-11SYKWA is -20°C to 60°C, with a relative humidity of 60% or less.
Yes, SC56-11SYKWA can be used in outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, UV, and extreme temperatures.
The maximum soldering temperature for SC56-11SYKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
Yes, SC56-11SYKWA is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliability and performance.
The typical lifespan of SC56-11SYKWA is 50,000 hours or more, depending on operating conditions, such as temperature, current, and environmental factors.

Community Provided

System Verified

Community Approved

Use the download button to access the SC56-11SYKWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SC56-, or try a keyword search, such as LED Displays
