SC56-21EWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)

Download SC56-21EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SC56-21EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

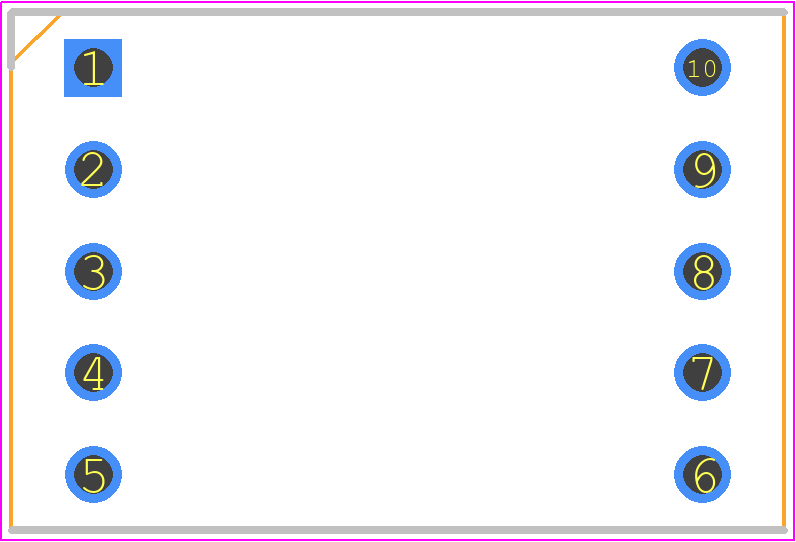

SC56-21EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP (0.600", 15.24mm)_2023
click to zoom
3D Models
SC56-21EWA - Kingbright - 3D model - Dual-In-Line Sockets - 10-DIP (0.600", 15.24mm)_2023
click to zoom

SC56-21EWA Details

  • Manufacturer Part Number:

    SC56-21EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

SC56-21EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC56-21EWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • Yes, SC56-21EWA can be used in outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SC56-21EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SC56-21EWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
  • The typical lifespan of SC56-21EWA is 50,000 hours or more, depending on the operating conditions and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC56-21EWA Overview

Use the download button to access the SC56-21EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC56-, or try a keyword search, such as LED Displays
