SC56-21SYKWA - Kingbright

Description: LED Displays & Accessories .56" SINGLE DIGIT YEL LED DISPLAY

Download SC56-21SYKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SC56-21SYKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

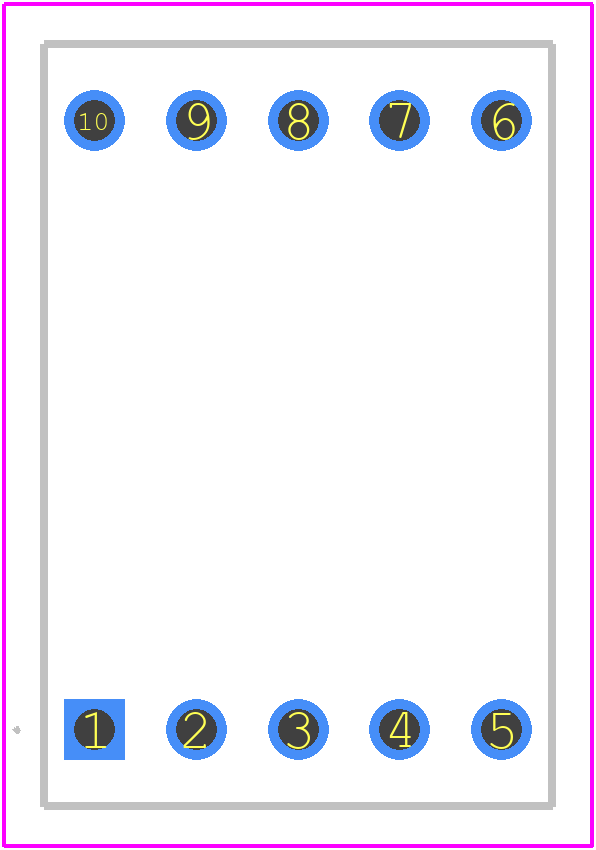

SC56-21SYKWA - Kingbright PCB footprint - Other - Other - SC56-21SYKWA-1
click to zoom
3D Models
SC56-21SYKWA - Kingbright - 3D model - Other - SC56-21SYKWA-1
click to zoom

SC56-21SYKWA Details

  • Manufacturer Part Number:

    SC56-21SYKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    SUPER BRIGHT YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC56-21SYKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC56-21SYKWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • While SC56-21SYKWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SC56-21SYKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SC56-21SYKWA is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile to avoid damage to the component.
  • The typical lifespan of SC56-21SYKWA is around 50,000 hours, depending on operating conditions, temperature, and usage patterns.
