Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to reduce noise and crosstalk.
The SCAN15MB200TSQX/NOPB has a high power dissipation, so proper thermal management is crucial. Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal pad layout. The device's thermal resistance (θJA) is specified in the datasheet, which can help with thermal design calculations.
While the datasheet specifies the recommended operating conditions, it's essential to note that the device's input and output voltage ranges have some flexibility. However, exceeding these ranges can lead to reduced performance, increased power consumption, or even device damage. Always ensure that the input and output voltages are within the recommended ranges to guarantee optimal performance.
To troubleshoot output signal quality issues, start by verifying the input signal quality, ensuring it meets the device's input requirements. Check the output termination, as improper termination can affect signal quality. Also, review the PCB layout to ensure that the output traces are well-separated and not prone to crosstalk or noise. If issues persist, consult the datasheet's application notes or contact Texas Instruments' support team.
Yes, the SCAN15MB200TSQX/NOPB is sensitive to electrostatic discharge (ESD). Follow proper ESD handling procedures during device handling, storage, and assembly. Ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD protection arrays, to prevent damage from static electricity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCAN15MB200TSQX/NOPB Overview

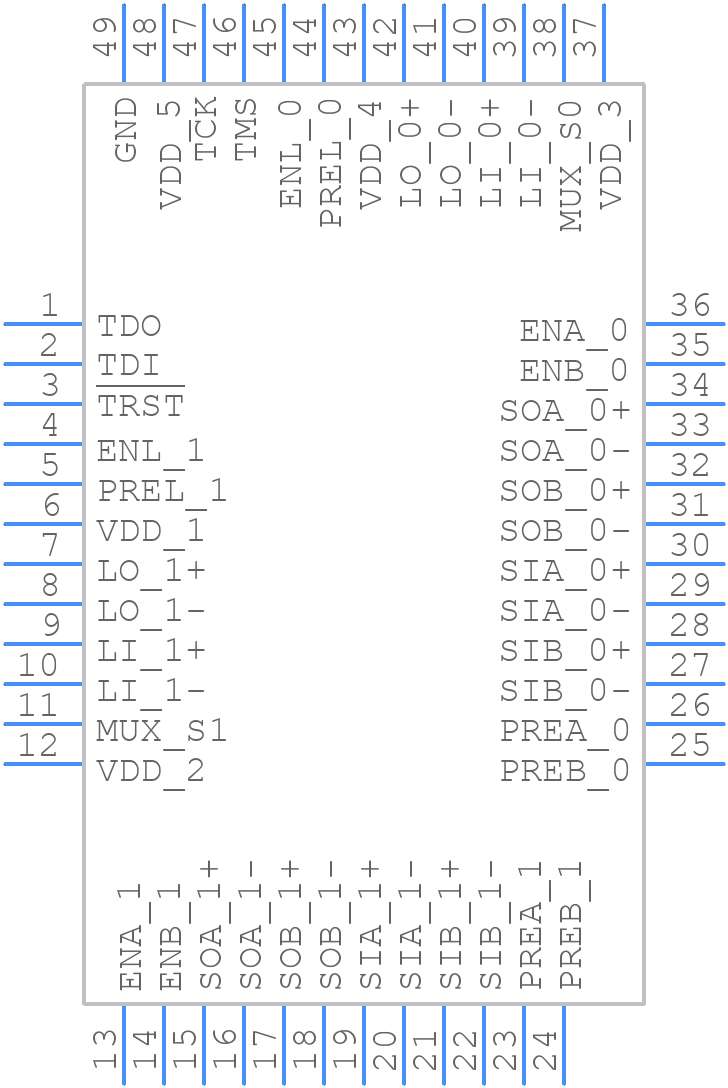

Use the download button to access the SCAN15MB200TSQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCAN1,
or try a keyword search, such as Line Driver or Receivers
