SCAN90CP02SP/NOPB - Texas Instruments

Description: 1.5 Gbps 2x2 LVDS Crosspoint Switch with Pre-Emphasis and IEEE 1149.6

Download SCAN90CP02SP/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

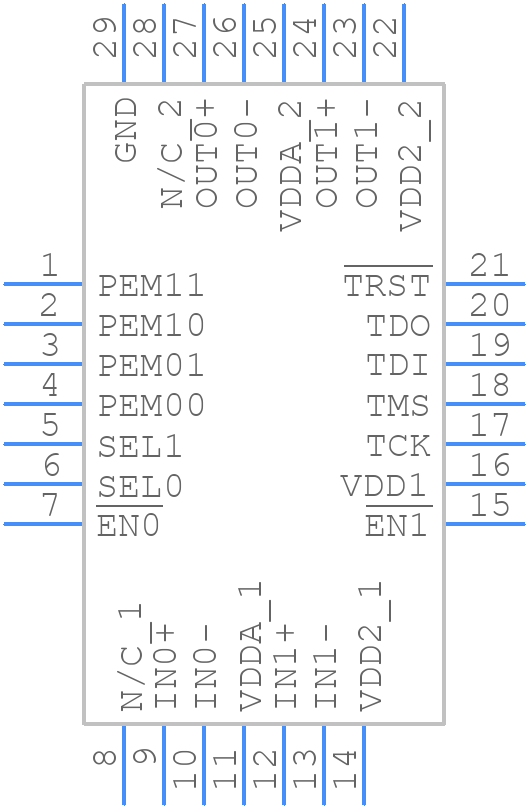

SCAN90CP02SP/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SCAN90CP02SP/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NJD0028A
click to zoom
3D Models
SCAN90CP02SP/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - NJD0028A
click to zoom

SCAN90CP02SP/NOPB Details

  • Manufacturer Part Number:

    SCAN90CP02SP/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    28

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CONFIGURABLE AS 2:1 MUX OR 1:2 SPLITTER

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    60 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    60 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    12 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

SCAN90CP02SP/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the SCAN90CP02SP/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple, and decouple the device with 0.1uF and 10uF capacitors between VCC and GND, placed as close to the device as possible. Additionally, use a 10kΩ resistor in series with the input signal to prevent ringing.
  • The SCAN90CP02SP/NOPB can handle clock frequencies up to 100 MHz, but the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to determine the maximum clock frequency for a specific design.
  • To troubleshoot issues with the SCAN90CP02SP/NOPB, start by verifying the power supply and decoupling, then check the input signal integrity and clock frequency. Use an oscilloscope to measure the output signal and compare it to the expected waveform. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The SCAN90CP02SP/NOPB is rated for operation up to 85°C, but it's recommended to derate the device for high-temperature operation. Consult the datasheet and application notes for guidance on thermal management and derating.
